1. Electronic hotel door lock unlock via RF card and mechanical key in emergency;
2. Two kinds of RF proximity card:
1) ATMEL Temic card, used as a room card, is very suitable for basic hotel room management;
2) PHILIPS M1fare card, multi-function with high capacity, is also called one-card pass. The card is not only used as a room card, but also can be used for parking, dining, shopping, etc.
3. Smart hotel key card lodging system, promote the hotel room management efficiency and reduce its costs ;
4. ANSI Five-latches mortise, deadbolt function, high security;
5. 4 pcs AA battery(6V). Low battery alert function, when the battery is below 4.8V, the lock will alarm;
6. Popular finishes in silvery
7. Mechanical key in emergency;
8. Door thickness requirement: above 35mm;
9. Hotel lock software free of charge.

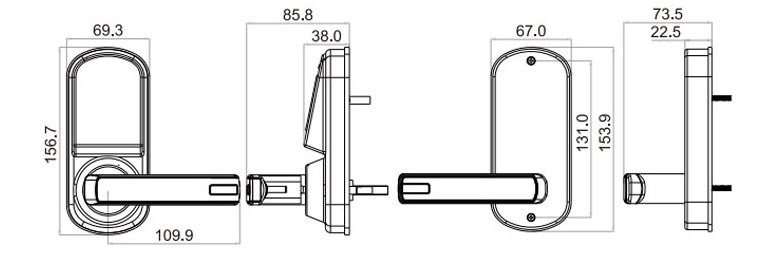

10. Front panel size:W69.3*L156.7*D85.8MM,back panel size:W67*L153.9*D73.5MM
Specification:
Card type
RF ID card
Card frequency
13.56MHZ
Reading Distance
2CM
Power Supply
4×AA
Low―voltage Index
4.8V(±0.2)
Battery life
1 year
Static current
≤20uA
Dynamic current
<200mA
Working temperature
-20℃~55℃
Storage temperature
-30℃ ~ 70℃
Working humidity
15%RH ~ 93%RH
