Hotel RFID Lock

DL-H802

H802-stainless steel hotel lock is made for the Mifare lock hotel upgrading renovation,easily change the IC lock into RF lock,which has been widely used in 7-Days Inn and HOME INN(>100,000 room)in China hotel inn market.
Enquiry Now
     1. Unlocking by RFID card + mechanical key in emergency
     2. Support card type: Temic T5557 card, 125KHz or M1fare S50 card, 13.56MHz
     3. Material: SUS304 stainless steel
     4. Powered by 4pcs AA Alkaline battery
     5. Battery life: approx 1 year
     6. Low voltage alarm
     7. Door ajar alert
     8. DND (Do not disturb) function available
     9. Management classification: support 14 types of cards including authorization card, clock card, room number setting card, master card, emergency card, floor card, building card, guest card, temporary card, house keeping card, alarm card, no-disturbing card etc
     10. Hidden cylinder
     11. Hotel locking system includes: hotel locking software, encoder, RF card, energy saving switch, data collector, click to get more information about Hotel smart door lock system.
     12. Warranty: 2 years, lifetime maintenance
     13. Hotel software interface with other PMS (API / SDK can be provided)

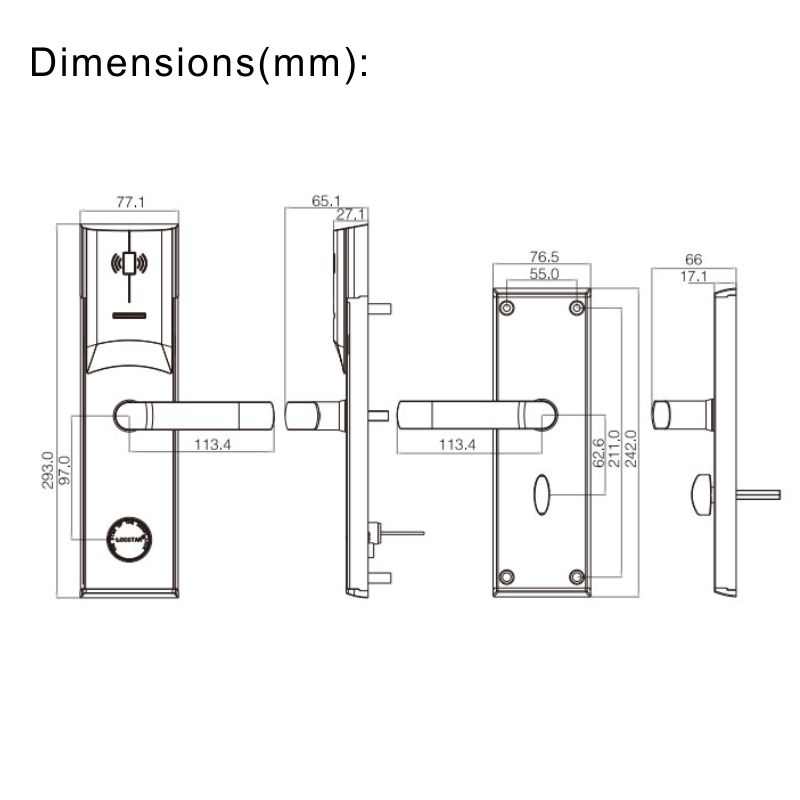

     14. Front panel size:W77.1*H293*D65.1mm,back panel size:W76.5*H242*D66mm

    Specification:

    Lock type RF card lock
    Electronic key NXP Mifare One S50 ATMEL T5557
    Mifare card Temic card
    International Standard ISO14443-A ISO11784/785
    Static current ≤25uA ≤15uA
    Dynamic current ≤200uA
    Power Supply 4×AA
    Low―voltage Index 5.0V(±0.2)
    Battery life ≥10000times
    Mechanical life ≥100000times
    Reliability ≥30000times
    Weight 3.0Kg
    Working temperature -20℃~55℃
    Storage temperature -30℃ ~ 70℃
    Working humidity 15%RH ~ 90%RH
