2. Support card type: Temic T5557 card, 125KHz or M1fare S50 card, 13.56MHz
3. Material: SUS304 stainless steel
4. Powered by 4pcs AA Alkaline battery
5. Battery life: approx 1 year
6. Low voltage alarm
7. Door ajar alert
8. DND (Do not disturb) function available
9. Management classification: support 14 types of cards including authorization card, clock card, room number setting card, master card, emergency card, floor card, building card, guest card, temporary card, house keeping card, alarm card, no-disturbing card etc
10. Hidden cylinder
11. Hotel locking system includes: hotel locking software, encoder, RF card, energy saving switch, data collector.Click to get more information about hotel smart door lock system.
12. Warranty: 2 years, lifetime maintenance
13. Hotel software interface with other PMS (API / SDK can be provided)

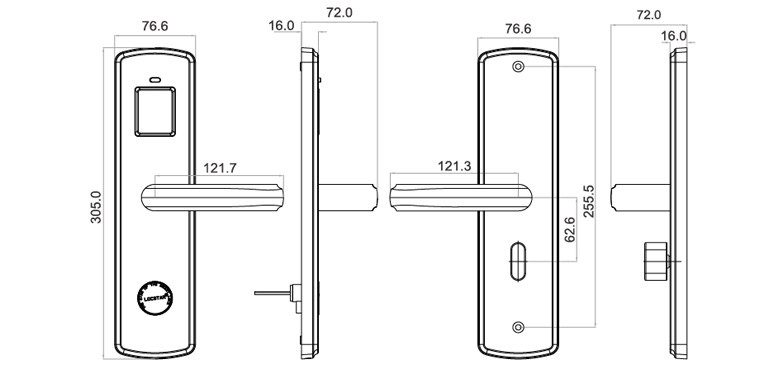

14. Panel size:W76.6*H305*D72mm
Specification:
Lock type
RF card lock
Electronic key
NXP Mifare One S50
ATMEL T5557
Mifare card
Temic card
International Standard
ISO14443-A
ISO11784/785
Static current
≤25uA
≤15uA
Dynamic current
≤200uA
Power Supply
4×AA
Low―voltage Index
5.0V(±0.2)
Battery life
≥10000times
Mechanical life
≥100000times
Reliability
≥30000times
Weight
3.0Kg
Working temperature
-20℃~55℃
Storage temperature
-30℃ ~ 70℃
Working humidity
15%RH ~ 90%RH
