Hotel RFID Lock

DL-H805S

H805S mifare door lock is a split lock,high end star hotel,slim and extraordinary design.
Philip‘s mifare S50 card to realize access control for guest room,common areas.

Enquiry Now

     1. Unlocking by RFID card + mechanical key in emergency

     2. Support card type: M1fare S50 card, 13.56MHz

     3. Material: SUS304 stainless steel

     4. Powered by 4pcs AA Alkaline battery

     5. Battery life: approx 1 year

     6. Low voltage alarm

     7. Door ajar alert

     8. DND (Do not disturb) function available

     9. Management classification: support 14 types of cards including authorization card, clock card, room number setting card, master card, emergency card, floor card, building card, guest card, temporary card, house keeping card, alarm card, no-disturbing card etc

     10. Hidden cylinder

     11. Hotel locking system includes: hotel locking software, encoder, RF card, energy saving switch, data collector

     12. Warranty: 2 years, lifetime maintenance

     13. Hotel software interface with other PMS (API / SDK can be provided)

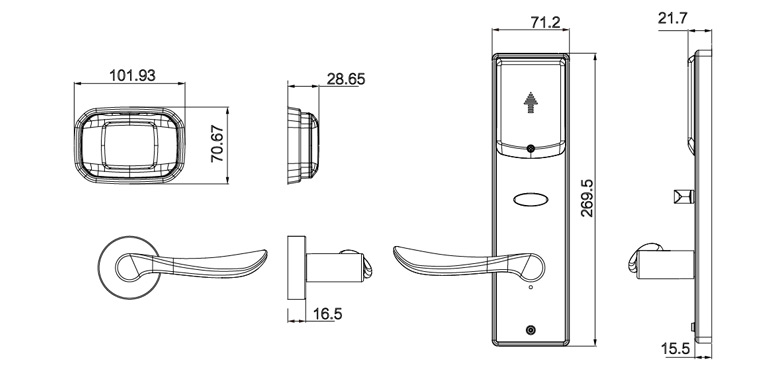

     14. Front panel size : W101.93*H70.67*D28.65mm,back panel size : W71.2*H268.5*D21.7mm

    Specification:

    Lock type RF card lock
    Card frequency Mifare One S50 card
    Reading Distance 2CM
    Power Supply 4×AA
    Low voltage Index 4.8V(±0.2)
    Battery life  ≥10000times
    Mechanical life ≥100000times
    Reliability ≥30000times
    Mechanical life     ≥100000times
    Static current ≤20uA
    Dynamic current <200mA
    Working temperature -20℃~55℃
    Storage temperature -30℃ ~ 70
    Working humidity 15%RH ~ 93%RH
