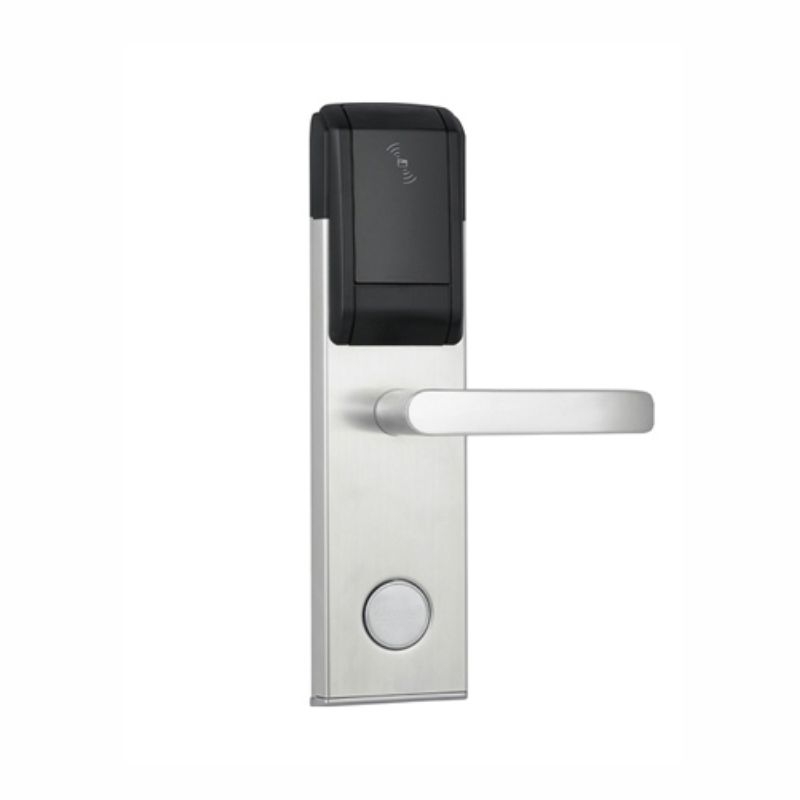

1. Unlocking by RFID card + mechanical key in emergency
2. Support card type: M1fare S50 card, 13.56MHz
3. Material: stainless steel
4. Powered by 4pcs AA Alkaline battery
5. Low voltage alarm
6. Door ajar alert

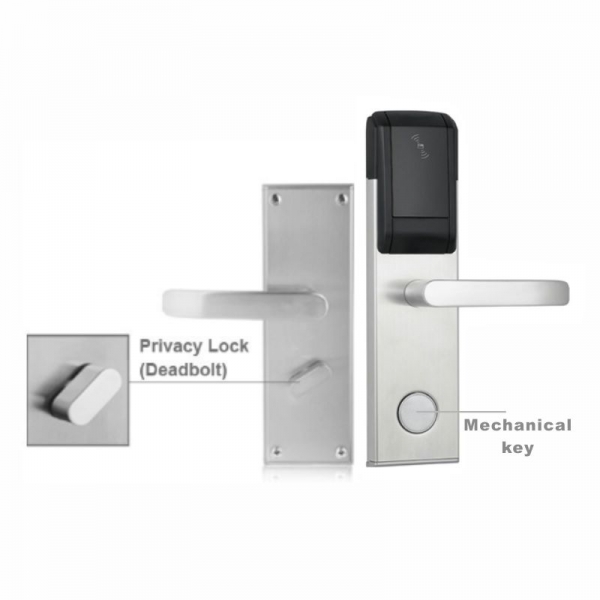

7. Hidden cylinder
8. External power poles in case out of power
9. Warranty: 2 years, lifetime maintenance
10. Free hotel software, free SDK to interface with the PMS

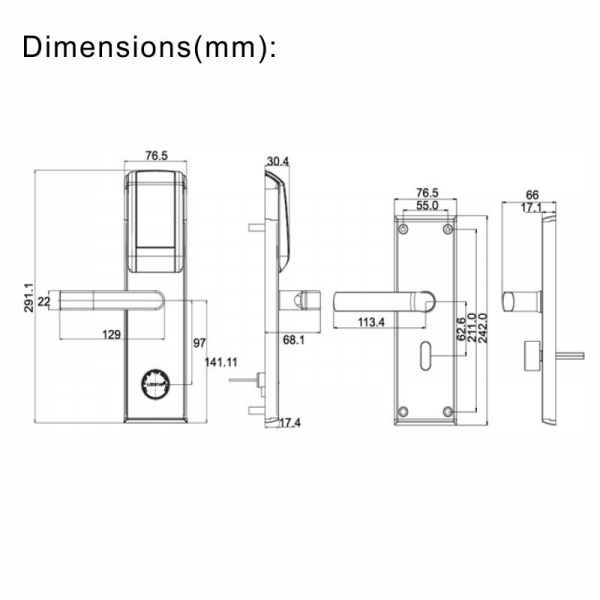

11. Front panel size:W76.5*H291.1*D30.4mm,back panel size:W76.5*H242*D66mmSpecification:
| Card type | RF ID card |
| Card frequency | Mifare One S50 card |
| Reading Distance | 2CM |
| Power Supply | 4×AA |
| Low―voltage Index | 4.8V(±0.2) |
| Battery life | ≥10000times |
| Mechanical life | ≥100000times |
| Reliability | ≥30000times |
| Mechanical life | ≥100000times |
| Static current | ≤20uA |
| Dynamic current | <200mA |
| Working temperature | -20℃~55℃ |
| Storage temperature | -30℃ ~ 70℃ |
| Working humidity | 15%RH ~ 93%RH |

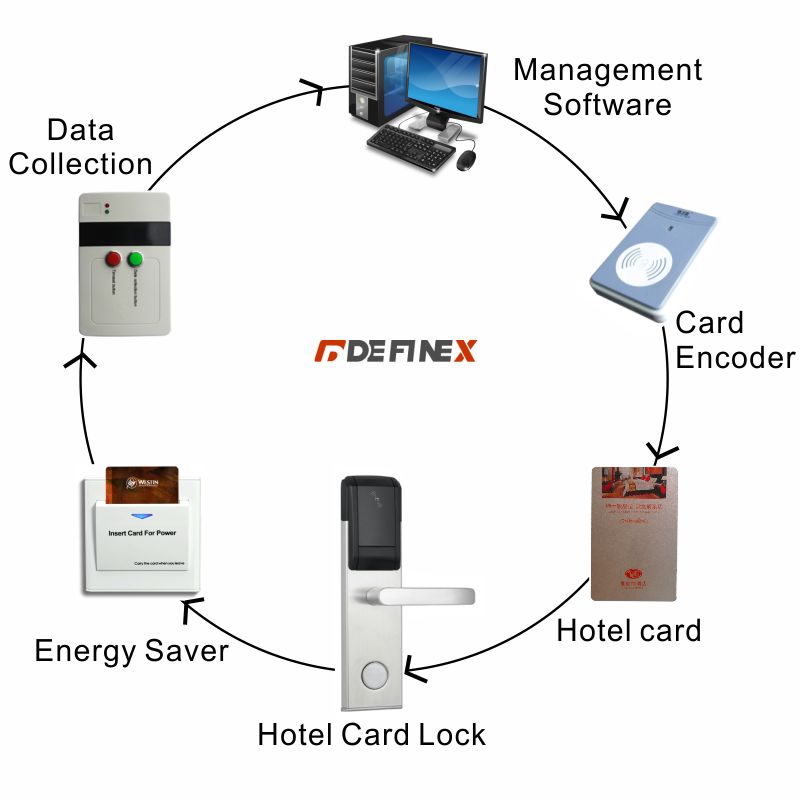

Hotel Management Diagram:
