Standalone Access

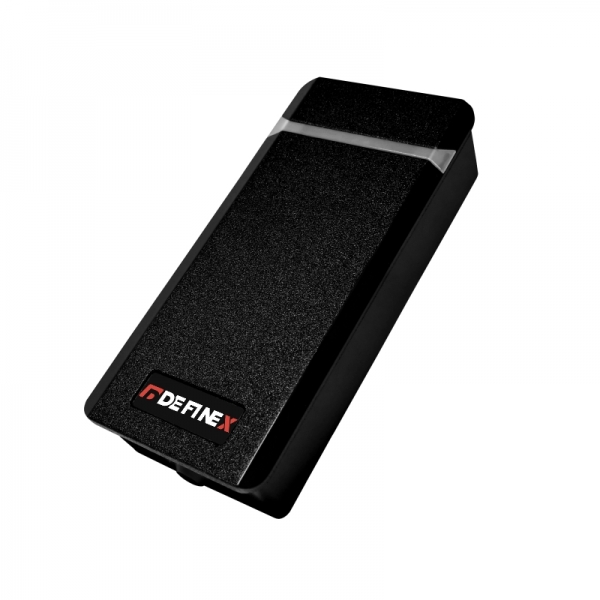

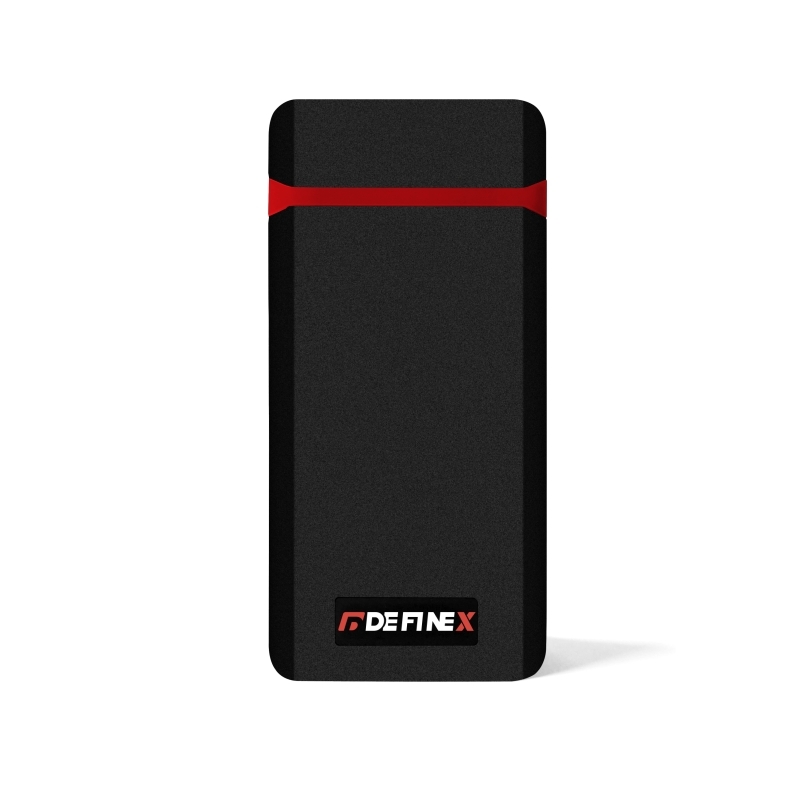

DX-S6MF-W(EM/EH)

Big capacity Access Control

Marterial:ABS,waterproof,confirms to IP66
Big capacity,supports 10,000 card users
Wiegand 26/37(Default WG26) output/input
Card type:EM/125KHz,Mifare 13.56MHz,EM+HID 125KHz optional
Read distance: EM<10CM,Mifare<5CM,HID<10CM
One relay (NO, NC, COM)
Pulse Mode, Toggle Mode, Anti vandal
2pcs device support interlock for two doors
Card block enrollment
Add/delete/transfer the user data via Bluetooth App
Working voltage: 12-28V DC/AC
Dimension: 103*48*21mm
Weight:135g

Enquiry Now

    Model No.
    DX-S6EM-W
    DX-S6MF-W
    DX-S6EH-W
    Read Format EM(125KHz)
    Mifare(13.56MHz)
    EM(125KHz)+Mifare(13.56Mhz)
    Read Range
    1-10(Max.)
    1-5(Max.)
    1-10(Max.)
    Comm.Interface

    Wiegand 26(default)/37 output

    Unlock Mode

    Card
    Card Capacity 10,000
    Comm.Baudrate
    None
    LED Indicator
    Green / Red Bi-color LED x 1 (Status / Power)
    Beep Tone
    Buzzer

    Ingress Protection Rate

    IP66

    Working Voltage

    12V-28V DC/AC ±10

    Current Consumption

    60mA (max)

    Operating Temperature

    -40°C - 75°C

    Operating Humidity

    0% ~ 80%(Non-condensing)

    Body Material ABS
    Unit Weight
    135g
    Dimension(WxHxD)
    103*48*21mm
