Standalone Access

DX-H5MF-W

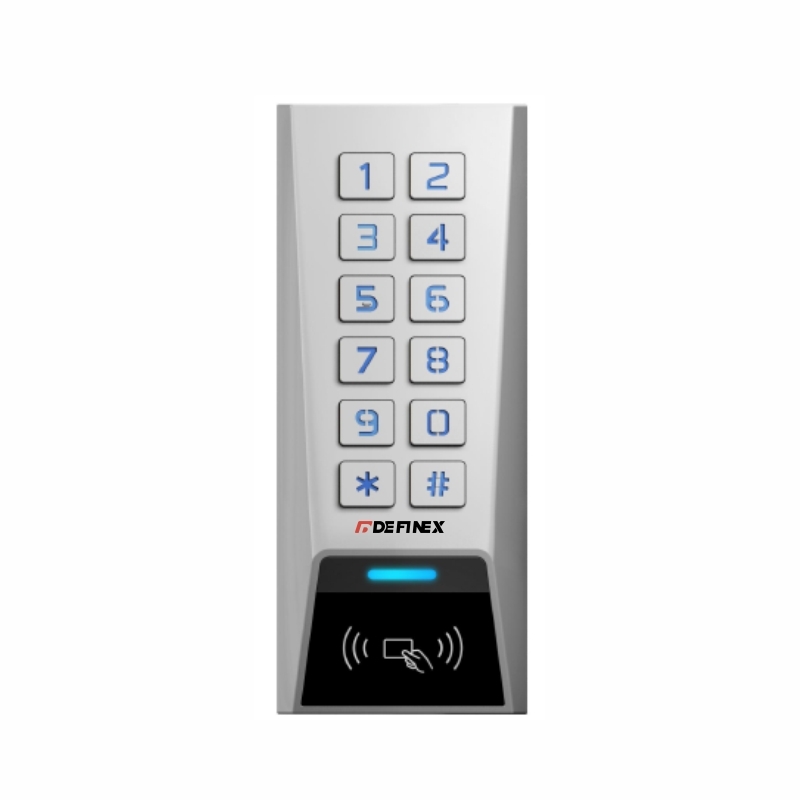

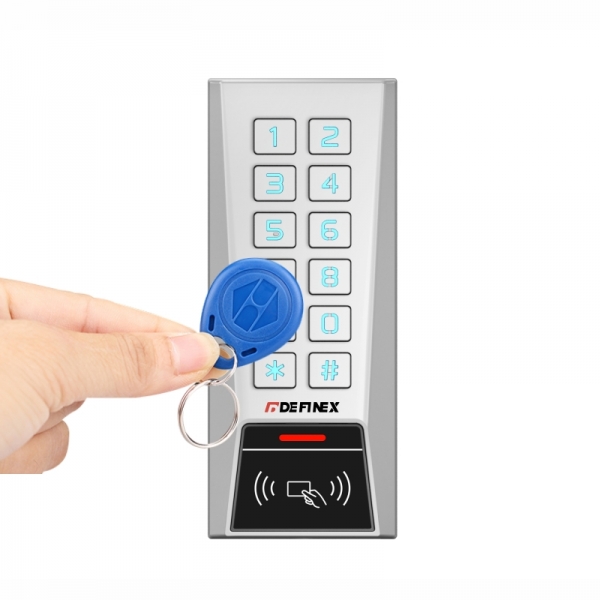

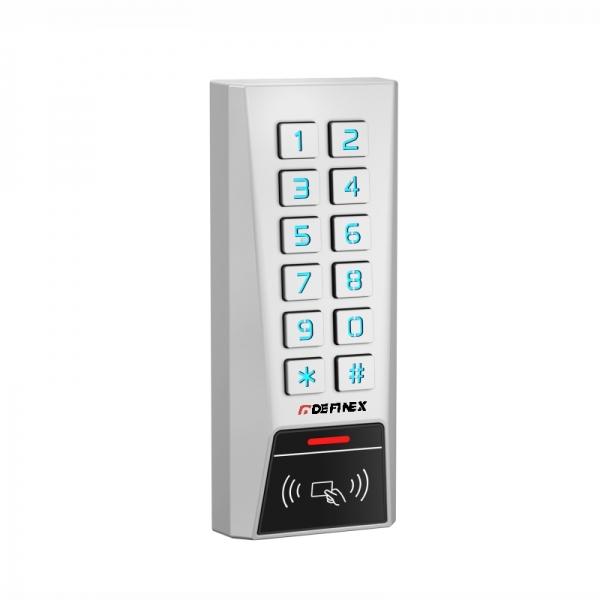

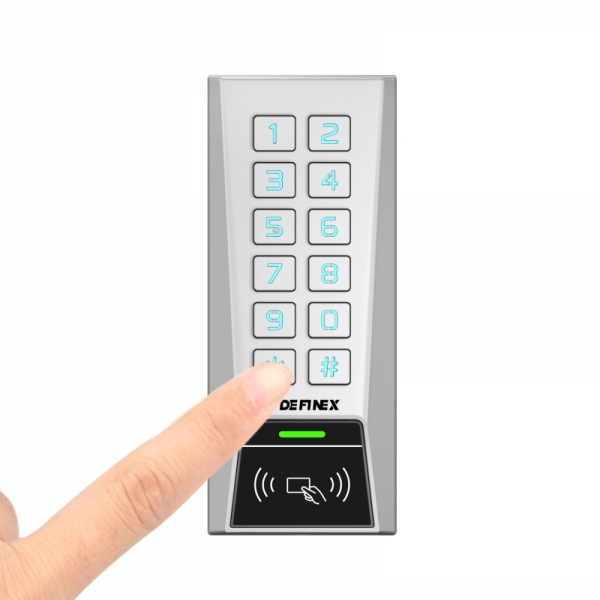

Metal Access Control Keypad

Zinc Alloy case,waterproof,confirms to IP66
1010 users, 1000 common users + 10 anti-duress users
Mechanical Keypad with blue digit backlight
Wiegand 26/37(Default WG26) output/input
Card type:EM/125KHz,Mifare 13.56MHz,EM+HID 125KHz optional
Read distance: EM<10CM,Mifare<5CM,HID<10CM
Keypad output format:4bits,8bits,10 digits virtual number
One relay (NO, NC, COM)
Pulse Mode, Toggle Mode, Anti vandal
2pcs device support interlock for two doors
Card block enrollment
Add/delete/transfer the user data via Bluetooth App
Working voltage: 12-28V DC/AC
Dimension: 134*55*22mm
Weight:500g

Enquiry Now

    Model No.
    DX-H5EM-W
    DX-H5MF-W
    DX-H5EH-W
    Read Format EM(125KHz)
    Mifare(13.56MHz)
    EM(125KHz)+Mifare(13.56Mhz)
    Read Range
    1-10(Max.)
    1-5(Max.)
    1-10(Max.)
    Comm.Interface

    Wiegand 26(default)/37 output

    Vandal-resistant Case Yes
    Keypad
    12keys (0-9, *, #),with blue backlight
    Keypad Output Format 4bits,8bits,10 digits virtural number

    Verification Type

    Card,Password,Card+Password
    Comm.Baudrate
    None
    LED Indicator
    Green / Red Bi-color LED x 1 (Status / Power)
    Beep Tone
    Buzzer

    Ingress Protection Rate

    IP66

    Working Voltage

    12V-28V DC/AC ±10

    Current Consumption

    60mA (max)

    Operating Temperature

    -40°C - 75°C

    Operating Humidity

    0% ~ 80%(Non-condensing)

    Body Material Zinc Alloy
    Unit Weight
    500g
    Dimension(WxHxD)
    134*55*22mm
