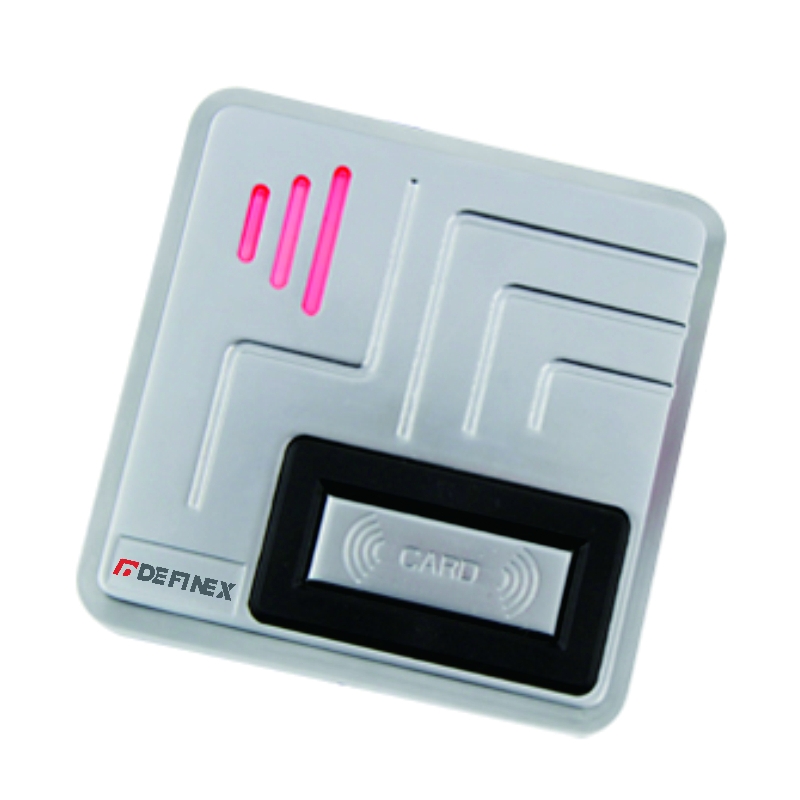

Model No.
|
DX-SM3EM
|
DX-SM3MF
|
DX-SM3EH
|
| Read Format | EM(125KHz) |
Mifare(13.56MHz)
|
EM(125KHz)+Mifare(13.56Mhz) |
|
Read Range
|
1-10(Max.)
|
1-5(Max.)
|
1-10(Max.)
|
|
Comm.Interface
|
Wiegand 26(default)/37 output |
||
|
Unlock Mode |
Card
|
||
| Card Capacity | 10,000 | ||
|
Comm.Baudrate
|
None | ||
| Relay | One(No,NC,COM) | ||
| Adjustable Relay output | 0-99s(default:5s) | ||
| Lock output load | 3 Amp(Max.) | ||
| Wiring connections | Relay output, exit button, alarm, door contact, Wiegand input, Wiegand output | ||
|
LED Indicator
|
Green / Red Bi-color LED x 1 (Status / Power)
|
||
|
Beep Tone
|
Buzzer
|
||
|
Working Voltage |
12V DC ±10％
|
||
|
Current Consumption |
60mA (max)
|
||
|
Operating Temperature |
-40°C - 75°C
|
||
|
Operating Humidity |
0% ~ 80%(Non-condensing) |
||
| Body Material | Zinc Alloy | ||
| Ingress Protection Level | IP67 | ||
|
Unit Weight
|
500g
|
||
|
Dimension(WxHxD)
|
86*86*23mm
|
||
