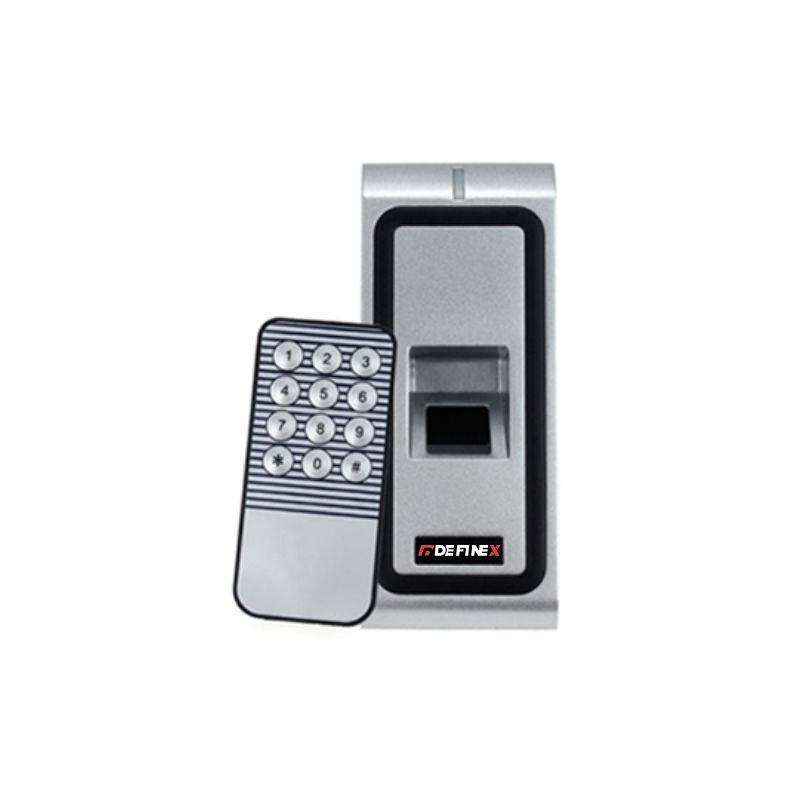

DX-F2EM-W Fingerprint + RF ID Card Access Control 2 in 1

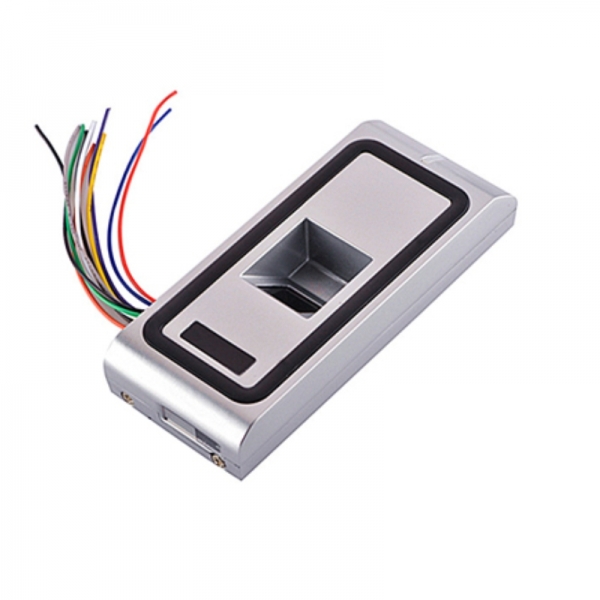

DX-F2EM-W is a metal Fingerprint standalone access controller whose electronics are fully potted,so the unit is waterproof and conforms to IP65.
It also is built-in prox. card reader supports 125KHZ EM cards.
DX-F2EM-W is a metal Fingerprint standalone access controller whose electronics are fully potted,so the unit is waterproof and conforms to IP65.
It also is built-in prox. card reader supports 125KHZ EM cards.
· Standalone biometric & RF ID access controller
· High-security, stable and industry level
· No keypad, no LCD design to improve dustproof & waterproof performance
· Simple operation, enrollment/Deletion of fingerprint / ID card just by a single press or a card-swiping
· Large capacity for fingerprint / ID card: 3000 each
· LED indicator & buzzer prompt when it*s succeed or not
· 24 hour uninterrupted long hour work
· SD card upload /download
Specification:
| CPU | 200MHZ tailor-made CPU |
|
Unlock Mode
|
Fingerprint,Card or password
|
|
Fingerprint Capacity
|
1000
|
|
Card Capacity
|
1000
|
| Card Type | EM 125KHz |
|
Read distance
|
3~10cm
|
|
Fingerprint Collector
|
optical sensor
|
| Fingerprint Resolution | 500dpi |
|
Response Time
|
<0.6s (full of 3000)
|
|
Sensor Mode
|
Uncoated Optical Sensor, Scratch and impact resistant
|
| Allowable Finger Rotation | 180 |
| Activation | Manual or Induction |
|
Communication
|
USB,U-Disk
|
|
Wiegand
|
Wiegand input and Wiegand outpput
|
|
Alarm
|
Tamper device,Force to open door ,Open door overtime
|
|
Magnetic function
|
Constant opening and closing
|
|
Opening time section
|
50 time zone,10 time groups,5 open groups
|
|
Enrollment Data Transfer
|
MINI SD Card
Via MINI SD card, it can send enrollment data to other Units
|
|
Bell
|
Bell output
|
|
Enrollment Data Transfer
|
MINI SD Card
|
|
Language
|
Chinese/English/ Any customized
|
|
FAR (False Acceptance Rate)
|
Less than 0.0001%
|
|
FRR (False Rejection Rate)
|
Less than 0.01%
|
|
Matching Mode
|
1: N
|
|
Working Voltage
|
DC 12V/ 1.5A
|
|
Working consumption
|
≤60mA(Static electricity);≤400mA when not running electric strike lock
|
|
Operating Temperature
|
0℃- 45℃
|
|
Operating Humidity
|
20%-80%
|
| Material | ABS |
|
Unit Dimension
|
155* 66*28mm(L*W*H)
|
|
Unit Weight
|
200g
|
* Note: The product is updated constantly and all the product parameters shown above are subject to change without notice.
