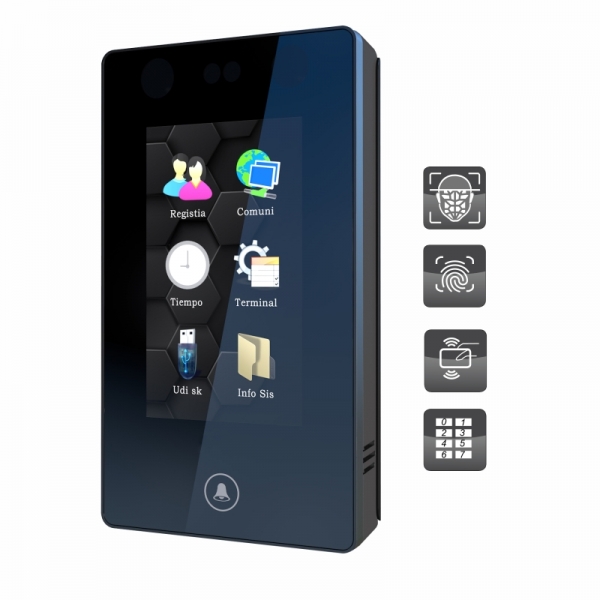

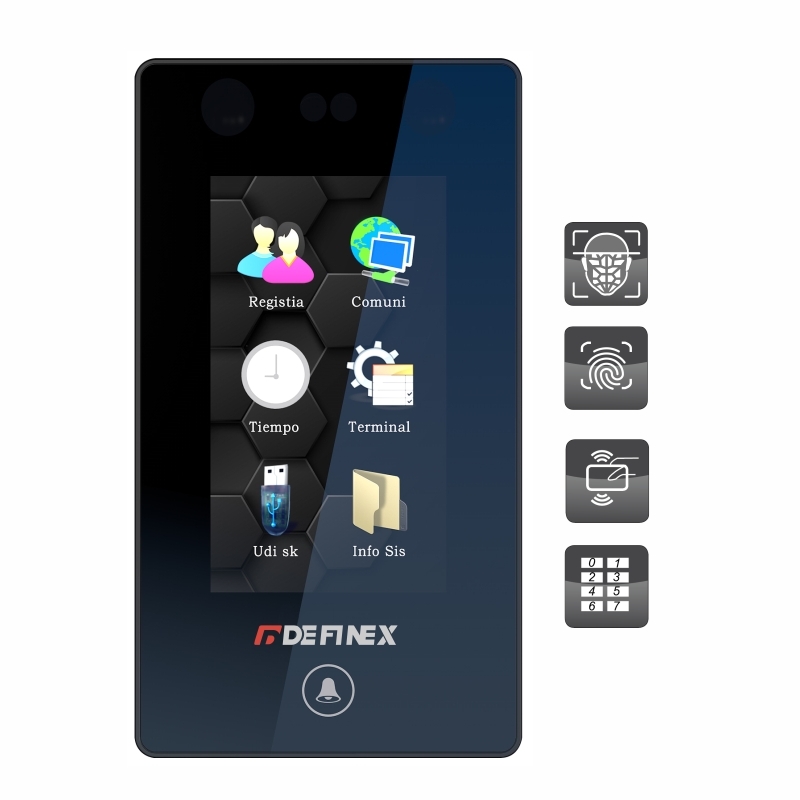

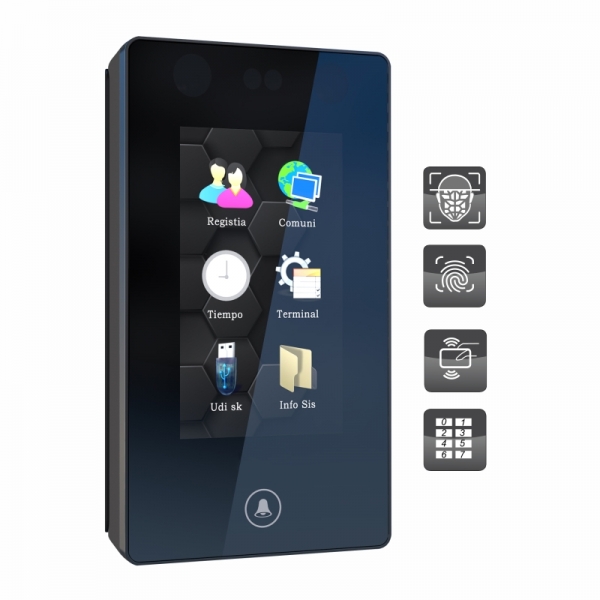

Definex X108
is an facial & fingerprint recognation terminal which can work both in network and standalone modes.
In network mode,it can connect with software for time attendance and access control management.
And in standalone mode, can use USB disk to download report directly from device.
Languages customization:
English/Chinese are default languages.And other language such as Arabic, French, Spanish, Russian, and Indonesian are available to customized
· The Face & Fingerprint device with 2 communication interface optional.
· Model: DT-NX108EM TCP/IP+USB version
· Model:DT-X108EM USB version
· The Face & Fingerprint device with 2 communication interface optional.
· Model: DT-NX108EM TCP/IP+USB version
· Model:DT-X108EM USB version
| CPU | ATMEL Arm 9 |
| LCD Display | 4.3"TFT Color screen |
|
Unlock Mode
|
Face,Fingerprint,Password or Card(optinal)
|
| Face Capacity | 500 |
|
Fingerprint Capacity
|
500
|
|
Password capacity
|
1,000
|
|
Card Capacity（Optional）
|
500
|
| Record Cpacity | 200,000 |
| Card Type(optional) | EM 125KHz(Mifare 13.56MHz optional) |
|
Read distance
|
3~10cm
|
|
Response Time
|
≤0.5s (full of 3000)
|
|
Communication
|
TCP/IP(DT-NX112EM),USB(for downloading/uploading)
|
|
Wiegand
|
Wiegand 26bits input/outpput
|
|
Alarm
|
Tamper device,Force to open door ,Open door overtime
|
|
U-Disk
|
Support
|
|
Door Bell
|
Support
|
|
LCD Language
|
English/Chinese (others need customization)
|
| Voice | English/Chinese |
| Access Control Function | 3rd party electric lock, door sensor,exit button, alarm, Door Bell |
|
FAR (False Acceptance Rate)
|
Less than 0.0001%
|
|
FRR (False Rejection Rate)
|
Less than 0.01%
|
|
Matching Mode
|
1: N
|
|
Working Voltage
|
DC 12V/ 1.5A
|
|
With software or not
|
With free software for access control and time attendance management
|
|
Operating Temperature
|
0℃- 45℃
|
|
Operating Humidity
|
20%-80%
|
| Material | ABS enclusure |
|
Unit Dimension
|
160* 89*30mm(L*W*H)
|
|
Unit Weight
|
450g
|
*Note: The product is updated constantly and all the product parameters shown above are subject to change without notice
