Specification
|
Single door-two ways
|
Two door-two way
|
Four Door-single way
|
|
Model
|
DX-NET012
|
DX-NET022
|

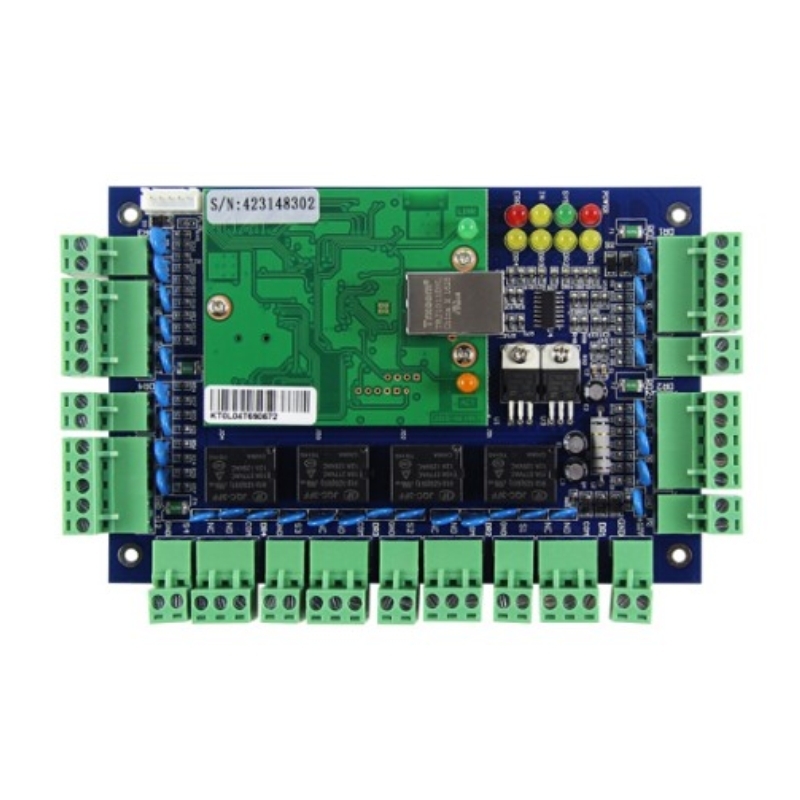

DX-NET041
|
|
Communication
|
TCP/IP 10M/100M (self-adaptive)
|
TCP/IP 10M/100M (self-adaptive)
|
TCP/IP 10M/100M (self-adaptive)
|
|
Main Features
|
Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button
|
Control 2 doors, get in and out door by swiping card, or get in by swiping card and get out door by button
|
Control 4 doors, get in and out door by swiping card, or get in by swiping card and get out door by button
|
|
PCB Size
|
160*106mm(L*H)
|
160*106mm(L*H)
|
160*106mm(L*H)
|
|
Controller box size
|
273mm*228mm*65mm
|
||
|
Power Supply
|
12VDC 4-7A
|
||
|
Power Consumption of Circuit Board
|
Less than 100mA
|
||
|
Input Format of Reader
|
Wiegand 26/34 (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)
|
||
|
Quantity of Readers
|
2PCS
|
4PCS
|
4PCS
|
|
Door Controlled
|
1
|
2
|
4
|
|
Door opening time extending setting
|
1-600 Seconds(adjustable)
|
||
|
Max q’ty of controller
|
Unlimited
|
Unlimited
|
Unlimited
|
|
Operation Temperature
|
-40℃-70℃
|
||
|
Operation Humidity
|
10-90 % RH,No Condensation
|
||
|
Q’ty of users
|
20,000 Users
|
||
|
Q’ty of Event Buffers(offline)
|
100,000 event buffers
|
||
|
Power interruption protection measure
|
High Speed Memory, Records never lose
|
||
|
Max Distance from Reader to Controller
|
100M (suggestion distance 80M)
|
||
|
Max Distance between Controllers
|
TCP/IP：Depending on network range |
||
|
Collocations（after purchasing box,power supply）
|
PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton
|
||
|
Fire and alarm linkage
|
If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm
|
||
|
Compulsive open and close door at long time
|
Yes
|
Yes
|
Yes
|
|
Open door in remote distance
|
Yes
|
Yes
|
Yes
|
|
Inter block
|
Yes
|
Yes
|
Yes
|
|
Anti pass back and tail
|
Yes
|
Yes
|
Yes
|
|
Multi-card open door
|
Yes
|
Yes
|
Yes
|
|
Open long time at specified time
|
Yes
|
Yes
|
Yes
|
|
Electronic map
|
Yes
|
Yes
|
Yes
|
|
Urgency locking
|
Yes
|
Yes
|
Yes
|
|
First card unlocking
|
Yes
|
Yes
|
Yes
|
|
Unlock based on internal and external validation
|
Yes
|
Yes
|
Yes
|
|
Extra Keypad connecting (card+password, supper password)
|
Yes
|
Yes
|
Yes
|
