TCP/IP Controller Panel/Box

DX-NET022

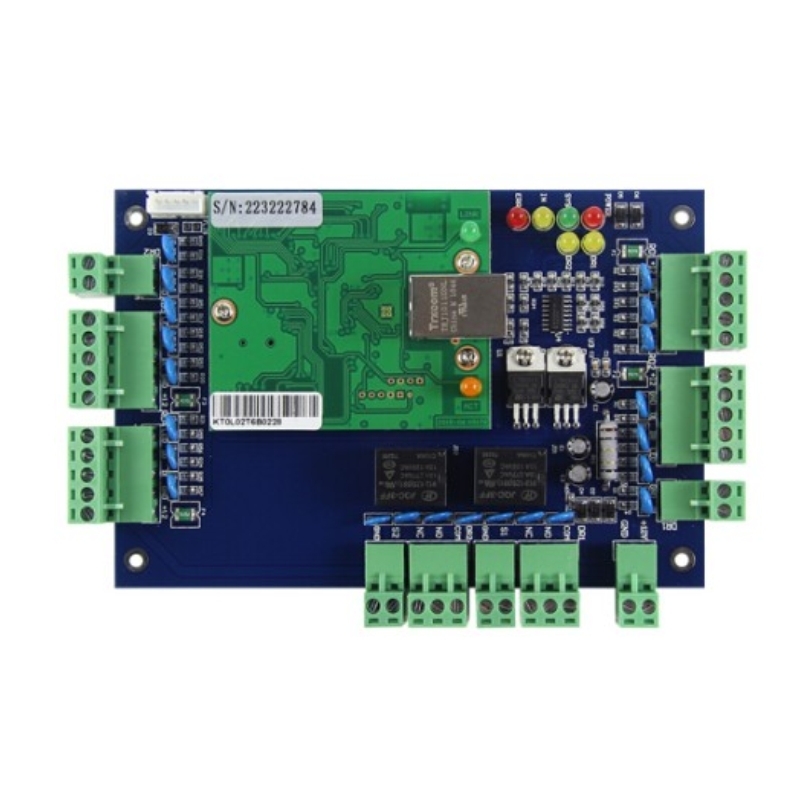

Two-door TCP/IP Access controller board

> Network Communication:TCP/IP
> Four-door Four-way With Webserver
Control of Memory up to 20,000 Users / up to 100,000 Event Buffers
English Software supportable database: Access and SQL
Alarm for long time door open, ilegal break in, intimidate
Fire and alarm linkage supported
Complsive open and close door at long time supported
Open door in remote distance supported
Anti pass back and tail supported
Multi-card open door supported
Open long time at specified time supported
Open door in remote distance supported
Unlock based on internal and external validation supported
Unlock based on internal and external validation supported
Enquiry Now
    Specification
    Single door-two ways
    Two door-two way
    Four Door-single way
    Model
    DX-NET012
    DX-NET022
    DX-NET041
    Communication
    TCP/IP 10M/100M (self-adaptive)
    TCP/IP 10M/100M (self-adaptive)
    TCP/IP 10M/100M (self-adaptive)
    Main Features
    Control 1 door, get in and out door by swiping card, or get in by swiping card and get out door by button
    Control 2 doors, get in and out door by swiping card, or get in by swiping card and get out door by button
    Control 4 doors, get in and out door by swiping card, or get in by swiping card and get out door by button
    PCB Size
    160*106mm(L*H)
    160*106mm(L*H)
    160*106mm(L*H)
    Controller box size
    273mm*228mm*65mm
    Power Supply
    12VDC 4-7A
    Power Consumption of Circuit Board
    Less than 100mA
    Input Format of Reader
    Wiegand 26/34 (All card reader with compatible protocol, such as Motorola , HID, EM , Mifare one etc)
    Quantity of Readers
    2PCS
    4PCS
    4PCS
    Door Controlled
    1
    2
    4
    Door opening time extending setting
    1-600 Seconds(adjustable)
    Max q’ty of controller
    Unlimited
    Unlimited
    Unlimited
    Operation Temperature
    -40℃-70℃
    Operation Humidity
    10-90 % RH,No Condensation
    Q’ty of users
    20,000 Users
    Q’ty of Event Buffers(offline)
    100,000 event buffers
    Power interruption protection measure
    High Speed Memory, Records never lose
    Max Distance from Reader to Controller
    100M (suggestion distance 80M)
    Max Distance between Controllers

    TCP/IP:Depending on network range
    Collocations(after purchasing box,power supply)
    PCB board, case, power, power line, serial port communication line, software, manual, certificate, key(2pcs), carton
    Fire and alarm linkage
    If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm
    Compulsive open and close door at long time
    Yes
    Yes
    Yes
    Open door in remote distance
    Yes
    Yes
    Yes
    Inter block
     Yes
    Yes
    Yes
    Anti pass back and tail
    Yes
    Yes
     Yes
    Multi-card open door
    Yes
    Yes
    Yes
    Open long time at specified time
    Yes
    Yes
    Yes
    Electronic map
    Yes
    Yes
    Yes
    Urgency locking
    Yes
    Yes
    Yes
    First card unlocking
    Yes
    Yes
    Yes
    Unlock based on internal and external validation
    Yes
    Yes
    Yes
    Extra Keypad connecting (card+password, supper password)
    Yes
    Yes
    Yes
