Face Recognition TA

DX-NFF60EM-TA

2.8" Facial Recognition TA/AC

2.8"TFT Color Screen
Fast Biometric recognition speed
High-security, stable and industry level
Access mode: Face,fingerprint,Card or password
Communication Interface:TCP/IP(DX-NF28EM),USB
Face Capacity:1,000
Fingerprint Capacity:3,000
Password capacity:2,000
Card Capacity:2,000(optional)
24 hour uninterrupted long hour work
U-Disk upload /download access data
Door bell support
Enquiry Now

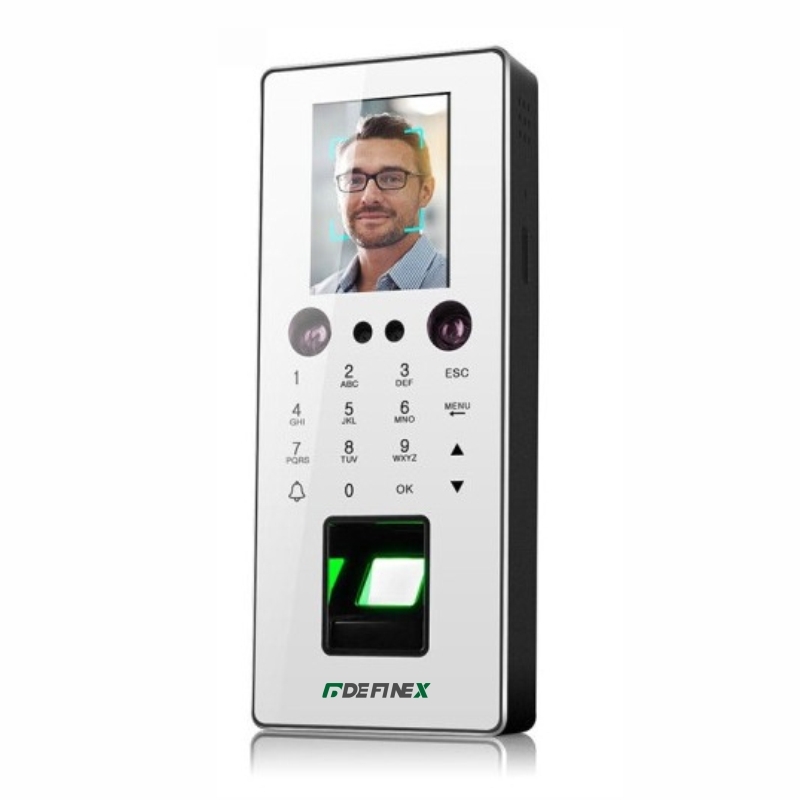

    Definex FF60
    is an facial & fingerprint recognation terminal which can work both in network and standalone modes.
    In network mode,it can connect with software for time attendance and access control management.
    And in standalone mode, can use USB disk to download report directly from device.

    Languages customization:
    English/Chinese are default languages.And other language such as Arabic, French, Spanish, Russian, and Indonesian are available to customized

    · The Face & Fingerprint device with 2 communication interface optional.

       · Model: DT-NFF60TA-EM           TCP/IP+USB version
       · Model:DT-FF60TA-EM               USB version


    CPU ATMEL Arm 9
    LCD Display 2.8"TFT Color screen
    Unlock Mode
    Face,Fingerprint,Password or Card(optinal)
    Face Capacity 1,000
    Fingerprint Capacity
    3,000
    Password capacity
    2,000
    Card Capacity(Optional)
    2,000
    Record Cpacity 100,000
    Card Type(optional) EM 125KHz(Mifare 13.56MHz optional)
    Read distance
    3~10cm
    Response Time
    0.5s (full of 3000)
    Communication
    TCP/IP(DT-NX112EM),USB(for downloading/uploading)
    Wiegand
    Wiegand 26bits input/outpput
    Alarm
    Tamper device,Force to open door ,Open door overtime
    U-Disk
    Support
    Door Bell
    Support
    LCD Language
    English/Chinese(others need customization)
    Voice English/Chinese
    Access Control Function 3rd party electric lock, door sensor,exit button, alarm, Door Bell
    FAR (False Acceptance Rate)
    Less than 0.0001%
    FRR (False Rejection Rate)
    Less than 0.01%
    Matching Mode
    1: N
    Working Voltage
    DC 12V/ 1.5A
    With software or not
    With free software for access control and time attendance management(only for model#DT-X112EM)
    Operating Temperature
    0℃- 45℃
    Operating Humidity
    20%-80%
    Material Alloy Zinc enclusure
    Unit Dimension
    220* 80*28mm(L*W*H)
    Unit Weight
    450g


    *Note: The product is updated constantly and all the product parameters shown above are subject to change without notice
