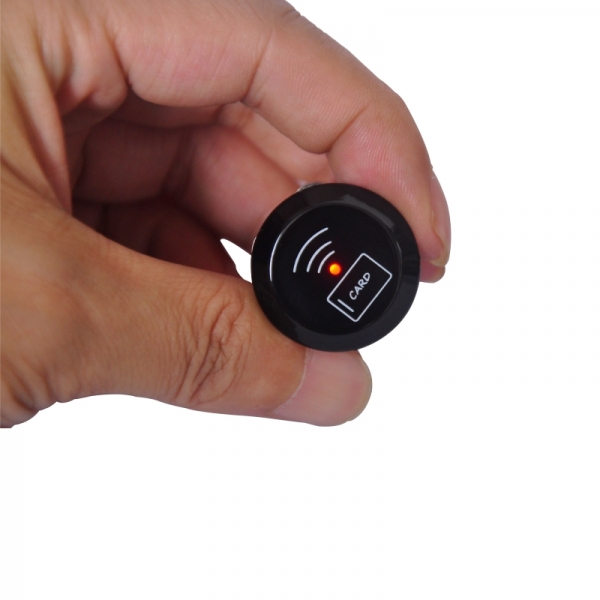

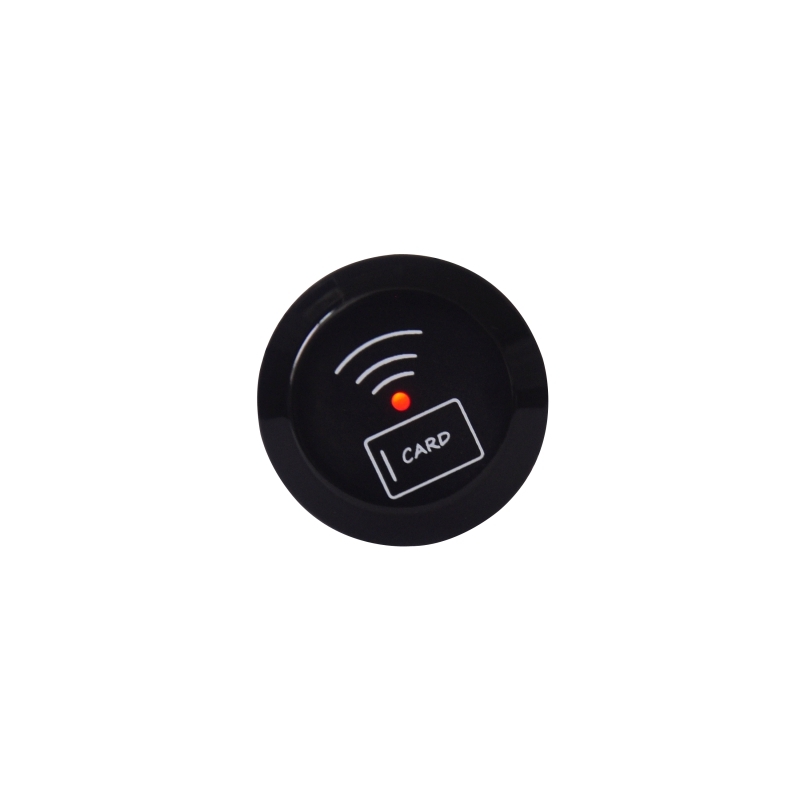

RB02 embedded RFID reader is designed for using in standalone access control systems. RB02 embedded reader supports EM Marine 125KHz & Mifare 13.56Mhz and connects to the controllers via Wiegand26 or Wiegand34 protocol.
RB02 embedded reader is made of mechanically durable and fire-resistant material (polycarbonate).It‘s give you following benefits:
· Ultra mini embedded mounting card reader
· Support EM/125KHzMifare ISO14443A card (Mifare/13.56Mhz optional)
· When working with controller,it provides unlock mode via card-swiping
· Wiegand 26/34 output, other formats need to be customized, ranging from Wiegand 26 to 42.
· Provides wiegand(default) and RS232/RS485 different communication interfaces to connect with controllers for different site requirements
· Additional functions: Dustproof, LED and buzzer controlled via external controller(optional).
Specifications:
· Provides wiegand(default) and RS232/RS485 different communication interfaces to connect with controllers for different site requirements
· Additional functions: Dustproof, LED and buzzer controlled via external controller(optional).
Specifications:
|
Model No.
|
DX-RB02EM
|
DX-RB02MF
|
DX-RB02EM/M
|
|
Read Format
|
EM/125KHz (Mifare/13.56MHz optional)
|
||
|
Read Range
|
2-6CM
|
1-5CM
|
1-5CM
|
|
Comm.Interface
|
Wiegand 26(default)/34 output |
Wiegand 26(default)/34 output |
Wiegand 26(default)/34 output |
| Vandal-resistant Case | Yes | ||
|
Keypad
|
/
|
||
|
Verification Type |
Card
|
||
|
LED Indicator
|
Red color LED x 1 (Status / Power)
|
||
|
Ingress Protection Rate |
IP60
|
||
|
Working Voltage |
12V DC ±10％
|
||
|
Current Consumption |
20mA (max)
|
||
|
Operating Temperature |
-10°C - 60°C
|
||
|
Operating Humidity |
20% ~ 80%(Non-condensing) |
||
|
Unit Weight
|
20g
|
||
| Material | Polycarbonate | ||
|
Dimension(WxHxD)
|
D26*22.5mm
|
||
