Model No.
|
DX-ST5EM-W
|
DX-ST5MF-W
|
DX-ST5EH-W
|
| Read Format | EM(125KHz) |
Mifare(13.56MHz)
|
EM(125KHz)+Mifare(13.56Mhz) |
|
Read Range
|
1-10(Max.)
|
1-5(Max.)
|
1-10(Max.)
|
|
Comm.Interface
|
Wiegand 26(default)/37 output |
||

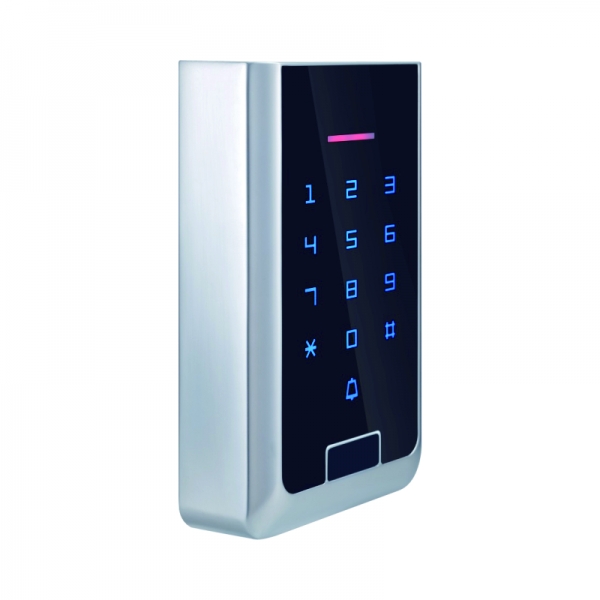

| Vandal-resistant Case | Yes | ||
|

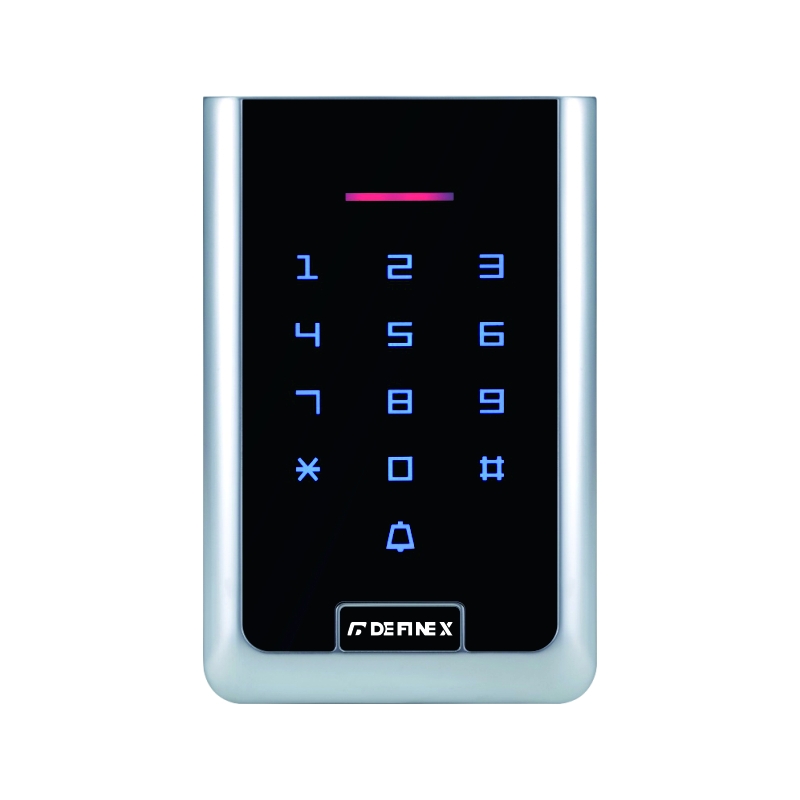

Keypad
|
12keys (0-9, *, #),with blue backlight
|
||
| Keypad Output Format | 4bits,8bits,10 digits virtural number | ||
|
Verification Type |
Card，Password,Card+Password
|
||
| Card Capacity | 1,000 | ||
| Password Capacity | 1,000 | ||
| Relay | One (NO,NC,COM) | ||
| Adjustable Relay Output Time | 0-99s (Adjustable,5s dedault) | ||
| Lock Output Load | 3 Amp Maximum | ||
| Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand input, Wiegand output | ||
|
Comm.Baudrate
|
None | ||
|
LED Indicator
|
Green / Red Bi-color LED x 1 (Status / Power)
|
||
|
Beep Tone
|
Buzzer
|
||
|
Ingress Protection Rate |
IP66
|
||
|
Working Voltage |
12V-28V DC/AC ±10％
|
||
|
Current Consumption |
60mA (max)
|
||
|
Operating Temperature |
-40°C - 75°C
|
||
|
Operating Humidity |
0% ~ 80%(Non-condensing) |
||
| Body Material | Aluminum Alloy with anodizing process(20um) | ||
|
Unit Weight
|
200g
|
||
|
Dimension(WxHxD)
|
114*68*18mm
|
||
