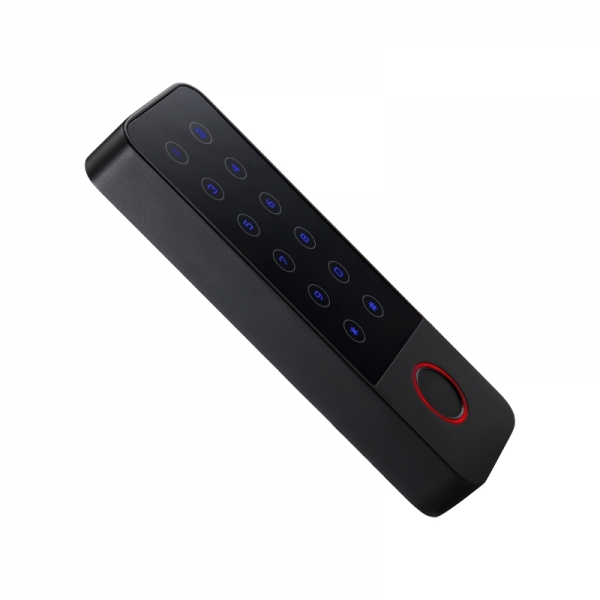

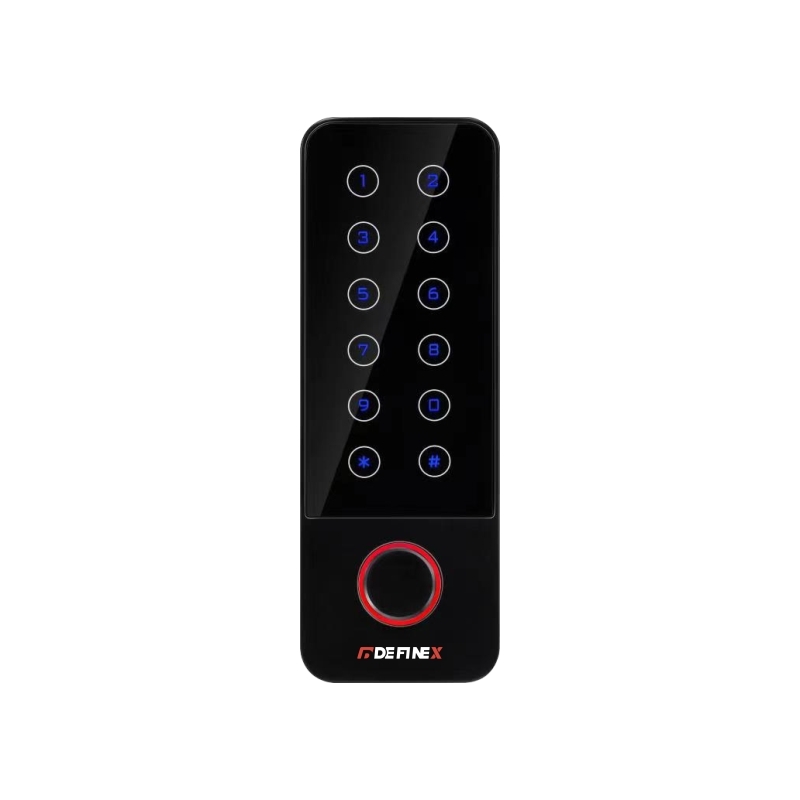

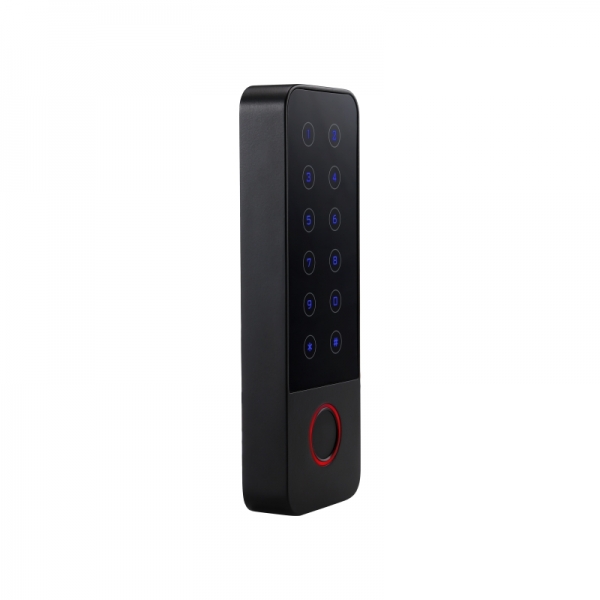

This device is a new generation metal waterproof fingerprint & RFID card standalone access control. It has the zinc alloy housing which is anti-explosion and anti-vandal.
Conforms to waterproof IP66 which is suitable for outdoor use.
supports 200 or 880 or 1750 fingerprint users and 2120 card users and supports fingerprint/card/code/multi-users/temporary visitor users opening the door. And can be set as the card reader.
Support upload and download the data of card & PIN code users. It has the door contact detection and anti-tamper functions.
supports 200 or 880 or 1750 fingerprint users and 2120 card users and supports fingerprint/card/code/multi-users/temporary visitor users opening the door. And can be set as the card reader.
Support upload and download the data of card & PIN code users. It has the door contact detection and anti-tamper functions.
· Support 200 or 880 or 1750 fingerprint users and 2120 card users.
· Support fingerprint/card/code/multi-users/temporary visitor users opening the door
· Can be set as the card reader
· Support upload and download the data of card & PIN code users.
· With the door contact detection and anti-tamper functions
Specifications:
· Support fingerprint/card/code/multi-users/temporary visitor users opening the door
· Can be set as the card reader
· Support upload and download the data of card & PIN code users.
· With the door contact detection and anti-tamper functions
Specifications:
| Model | DX-SF2EM-WR | DX-SF6MF-WR |
| Read Format | EM (125KHz) | Mifare (13.56MHz) |
|
Read Range
|
≤5cm
|
≤3cm |
| Card/Pin Capacity | 2020 | |
|
Fingerprint Capacity
|
500
|
|
|
Fingerprint Collector
|
optical sensor
|
|
| Fingerprint Resolution | 500dpi | |
| Identification Mode | 1:1/1:N | |
|
Identification Time
|
<0.6s (full of 3000)
|
|
| FAR (False Acceptance Rate) | ≤0.001% | |
| FRR (False Rejection Rate) | ≤0.01% | |
|
Sensor Mode
|
Uncoated Optical Sensor
|
|
|
Keypad
|
12 key (0~9,*,#),Sensitive Touch Keypad
|
|
|
Alarm
|
Tamper device,Force to open door ,Open door overtime
|
|
|
Opening time section
|
50 time zone,10 time groups,5 open groups
|
|
|
Idle Current
|
≤45mA
|
|
| Active Current | ≤150mA | |
|
Operating Temperature
|
-20℃-~60℃
|
|
|
Operating Humidity
|
10%~99%
|
|
| Material | Zinc Alloy | |
|
Unit Dimension
|
130* 46*16mm(L*W*H)
|
|
|
Unit Net Weight
|
230g
|
|
| Unit Packing Weight | 300g | |
