Wireless Access Control

WT5K-B

Wireless Access Control Kit

Vandalproof/Waterproof, Protection level conforms to IP66
Wireless Keypad,Wireless controller
Enquiry Now

    This is a wireless access control. It is metal case, reads 125KHz EM/13.56MHz mifare card, adopting 433MHz wireless communication technology and TEA+ rolling code encryption algorithm.
    Meanwhile it can be connected with door contact, external alarm, external exit button,external door bell.

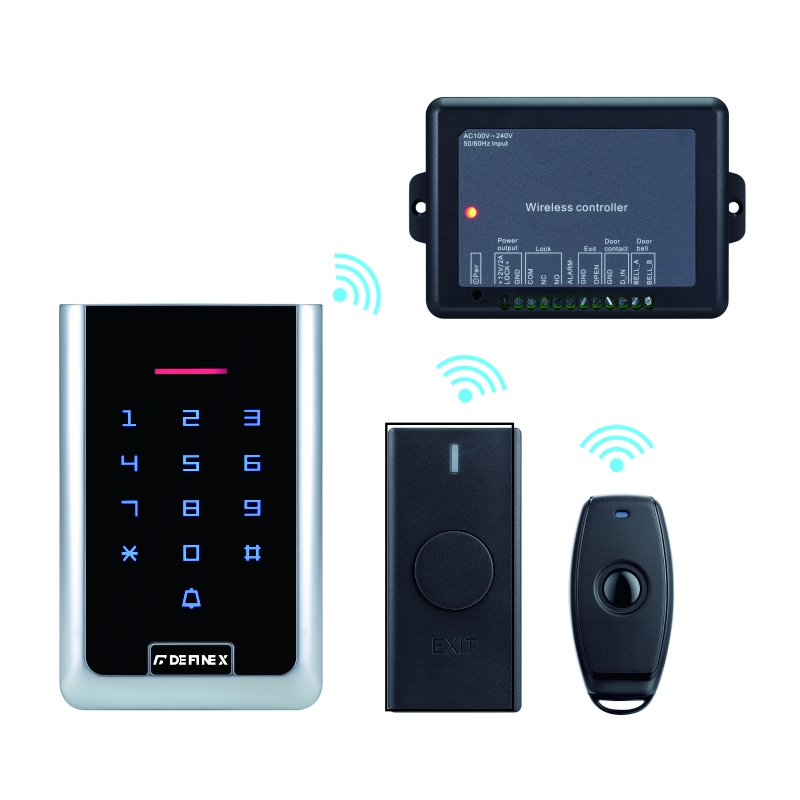

    Wireless access control consists of three parts:
    ·

    Wireless Access Control Keypad (install at the door outside)
    · Wireless Controller (install inside the door)
    · Wireless Exit Button (install inside the door)

    One Wireless controller can be connected with 5 devices (Wireless keypad+ Wireless exit button+Remote control). And one Wireless access control keypad (or one Wireless exit button) can be connected with unlimited Wireless controllers.


    Specifications:

    Model No.
    DX-WT5K-B-EM
    DX-WT5K-B-MF
    DX-WT5K-B-HID(not ready)
    Read Format
    EM/125KHz Mifare/13.56MHz HID/125KHz
    Lock Output Load 2Amp Maximum
    Comm.Frequency
    433MHz
    Comm.Distance

    20m (Max)

    User Capacity 1,000 Ordinary Users+100 Visitor Users
    Keypad
    Yes

    Verification Type

    PIN,Card,remote control
    LED Indicator
    Green / Red Bi-color LED x 1 (Status / Power)
    Beep Tone
    Buzzer

    Working Voltage

    Keypad:3*AAA batteries,
    Controller: 110-240V AC ±10%,
    Exit Button: CR2032 Lithium battery(3V)

    Idle Current

    Keypad≤10uA, Exit Button≤10uA,Controller≤20mA
                    Active Current                                                      Keypad:≤70mA,Wireless Exit Button:≤8mA,Wireless Controller:≤50mA

    Operating Temperature

    -40°C ~ 60°C(-22°F~140°F)

    Operating Humidity

    10% ~ 90%(Non-condensing)

    Ingress Protection Rate

    IP66
    Housing Material Zinc Alloy
    Unit Weight
    300g (Slim keypad), Controller: 62g, Exit Button: 34g
    Shipping Weight 525g
    Dimension(WxHxD)
    Wireless keypad:129*44*20mm(L*W*H)
    Wireless controller:85*50*25mm(L*W*H)
    Remote control:80*38*15(L*W*H)
