This is a wireless access control. It is metal case, reads 125KHz EM/13.56MHz mifare card, adopting 433MHz wireless communication technology and TEA+ rolling code encryption algorithm.
Meanwhile it can be connected with door contact, external alarm, external exit button,external door bell.

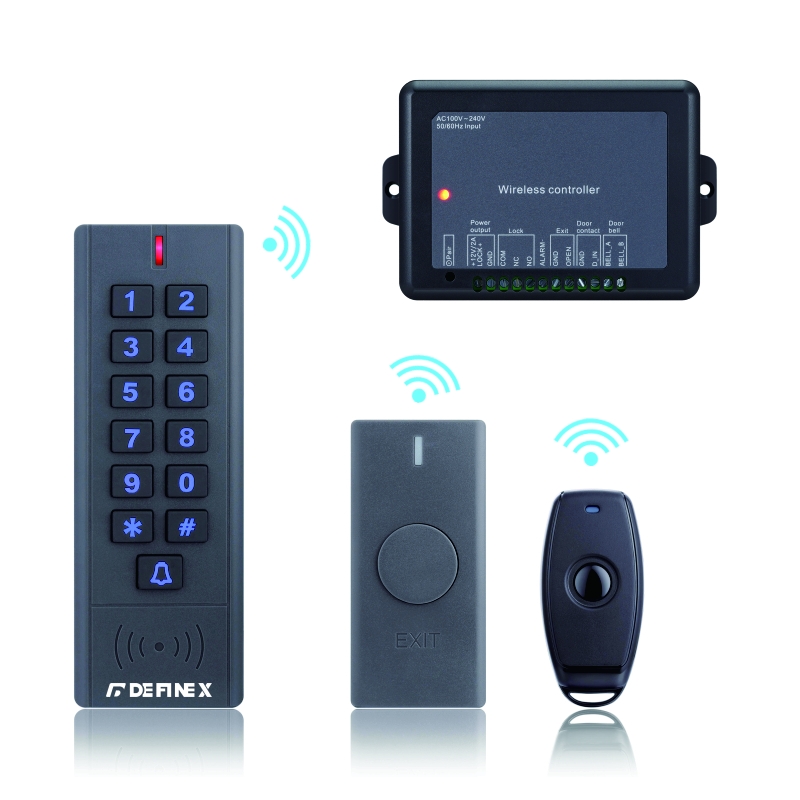

Wireless access control consists of three parts:
· Wireless Access Control Keypad (install at the door outside)
· Wireless Controller (install inside the door)
· Wireless Exit Button (install inside the door)
One Wireless controller can be connected with 5 devices (Wireless keypad+ Wireless exit button+Remote control). And one Wireless access control keypad (or one Wireless exit button) can be connected with unlimited Wireless controllers.
Specifications:
· Wireless Access Control Keypad (install at the door outside)
· Wireless Controller (install inside the door)
· Wireless Exit Button (install inside the door)
One Wireless controller can be connected with 5 devices (Wireless keypad+ Wireless exit button+Remote control). And one Wireless access control keypad (or one Wireless exit button) can be connected with unlimited Wireless controllers.
Specifications:
|
Model No.
|
DX-WP3K-B-EM
|
DX-WP3K-B-MF
|
DX-WP3K-B-HID(not ready)
|
|
Read Format
|
EM/125KHz | Mifare/13.56MHz | HID/125KHz |
| Lock Output Load | 2Amp Maximum | ||
|
Comm.Frequency
|
433MHz
|
||
|
Comm.Distance
|
30m (Max) |
||
| User Capacity | 1,000 Ordinary Users+100 Visitor Users | ||
|
Keypad
|
Yes
|
||
|
Verification Type |
PIN,Card,remote control
|
||
|
LED Indicator
|
Green / Red Bi-color LED x 1 (Status / Power)
|
||
|
Beep Tone
|
Buzzer
|
||
|
Working Voltage |
Keypad:3*AAA batteries,
Controller: 110-240V AC ±10%, Exit Button: CR2032 Lithium battery（3V） |
||
|
Idle Current |
Keypad≤10uA, Exit Button≤10uA,Controller≤20mA
|
||
| Active Current | Keypad:≤70mA,Wireless Exit Button:≤8mA,Wireless Controller:≤50mA | ||
|
Operating Temperature |
-40°C ~ 60°C(-22°F～140°F）
|
||
|
Operating Humidity |
10% ~ 90%(Non-condensing) |
||
|
Ingress Protection Rate |
IP66
|
||
| Housing Material | ABS | ||
|
Unit Weight
|
300g (Slim keypad), Controller: 62g, Exit Button: 34g
|
||
| Shipping Weight | 525g | ||
|
Dimension(WxHxD)
|
Wireless keypad:129*44*20mm(L*W*H)
Wireless controller:85*50*25mm(L*W*H) Remote control:80*38*15(L*W*H) |
||
