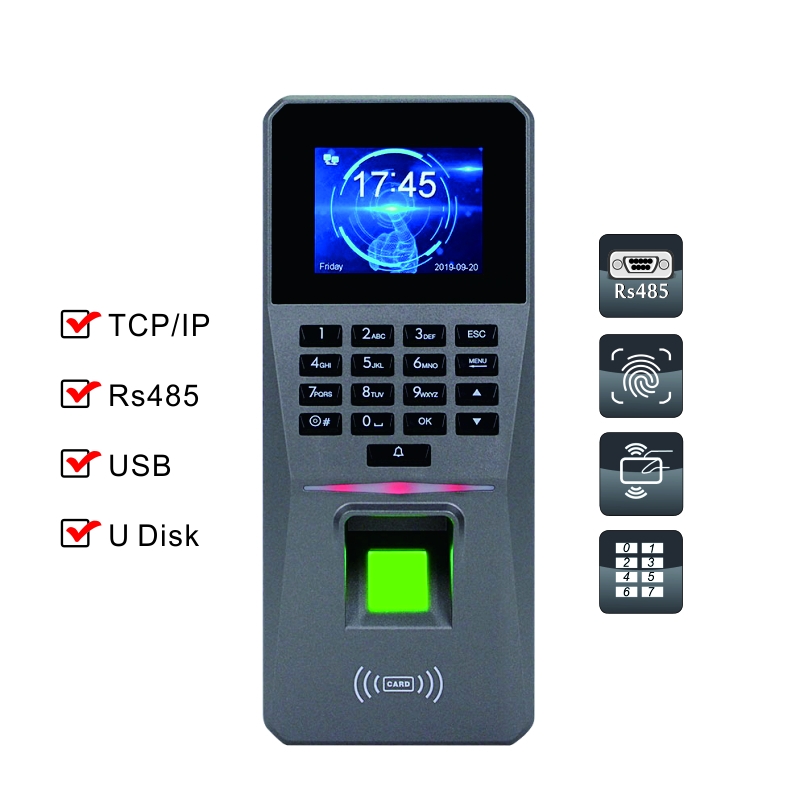

F16
is an fingerprint recognation terminal which can work both in network and standalone modes.
In network mode,it can connect with software for time attendance and access control management.
And iIn standalone mode, can use USB disk to download report directly from device.
Languages customization:
Arabic, French, Spanish, Russian, and Indonesian are available to customized
· The Fingerprint device with 2 communication interface optional.
· Model: DX-NF16EM(/MF) TCP/IP+RS485+USB version
· Model:DX-F16EM(/MF) USB version
Specification:
· The Fingerprint device with 2 communication interface optional.
· Model: DX-NF16EM(/MF) TCP/IP+RS485+USB version
· Model:DX-F16EM(/MF) USB version
Specification:
| CPU | ATMEL Arm 9 |
| LCD Display | 2.4"TFT Color screen |
|
Unlock Mode
|
Fingerprint,Card or password
|
|
Fingerprint Capacity
|
3,000
|
|
Password capacity
|
3,000
|
|
Card Capacity（Optional）
|
3,000
|
| Record Cpacity | 160,000 |
| Card Type(optional) | EM 125KHz(Mifare 13.56MHz optional) |
|
Read distance
|
3~8cm
|
|
Fingerprint Collector
|
optical sensor
|
| Fingerprint Resolution | 500dpi |
|
Response Time
|
≤0.5s (full of 3000)
|
|
Sensor Mode
|
Uncoated Optical Sensor
|
|
Communication
|
USB(for downloading/uploading),RS485,TCP/IP(DX-NF26EM)
|
|
Wiegand
|
Wiegand 26bits Input/outpput
|
|
Alarm
|
Tamper device,Force to open door ,Open door overtime
|
|
U-Disk
|
Support
|
|
Door Bell
|
Support
|
|
LCD Language
|
English, Chinese (others need customization)
|
| Voice Output | English/Chinese |
| Access Control Function | 3rd party electric lock, door sensor,exit button, alarm, Door Bell |
|
FAR (False Acceptance Rate)
|
Less than 0.0001%
|
|
FRR (False Rejection Rate)
|
Less than 0.01%
|
|
Matching Mode
|
1: N
|
|
Working Voltage
|
DC 12V/ 1.5A
|
|
With software or not
|
With free software for access control and time attendance management(only for model#DX-NF26EM)
|
|
Operating Temperature
|
0℃- 45℃
|
|
Operating Humidity
|
20%-80%
|
| Material | ABS Enclosure |
|
Unit Dimension
|
191* 81*29mm(L*W*H)
|
|
Unit Weight
|
350g
|
*Note: The product is updated constantly and all the product parameters shown above are subject to change without notice
