TCP/IP Controller

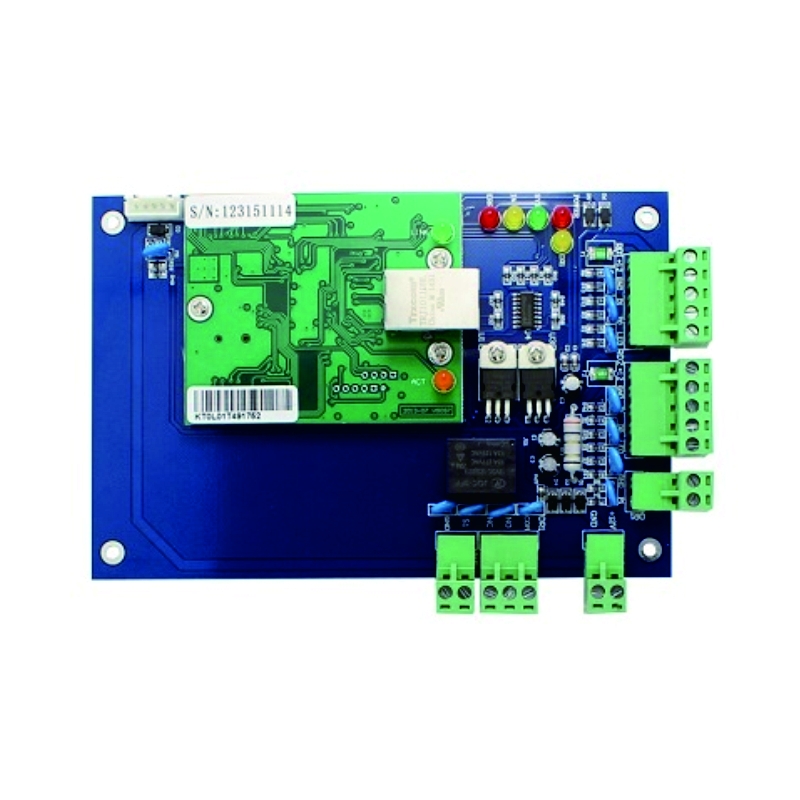

Single door TCP/IP controller DX-NET012

Product Type:One-door controller
Network Communication:TCP/IP
One-door two-way With Webserv
Readers can connected: 2 pcs
Control of Memory up to 20,000 Users / up to 100,000 Event Buffers
English Software supportable database: Access and SQL
Alarm for long time door open, ilegal break in, intimidate
Fire and alarm linkage supported
Complsive open and close door at long time supported
Open door in remote distance supported
Anti pass back and tail supported
Multi-card open door supported
Open long time at specified time supported
Unlock based on internal and external validation supported
Keypad (card+passwor, supper password) supported
Enquiry Now
    * Unit Packing Size; 273mm*228mm*65mm
    * Power Supply: 12VDC; 4-7A
    * Power Consumption of Circuit Board: Less than 100mA
    * Input Format of Reader: Wiegand 26/34 bit
    * Quantity of Readers: 2 pcs
    * Door opening time extending setting: 1-600 Seconds(adjustable)
    * Max quantity of controller: Unlimited
    * Operation Temperature: -40℃-70℃
    * Operation Humidity: 10-90 % RH , No Condensation
    * Max Distance from Reader to Controller: 100M (suggestion distance 80M)
    * Max Distance between Controllers: Depand on network range
    File Name : Format: Size: Download:

    *

    *

    *

    *
