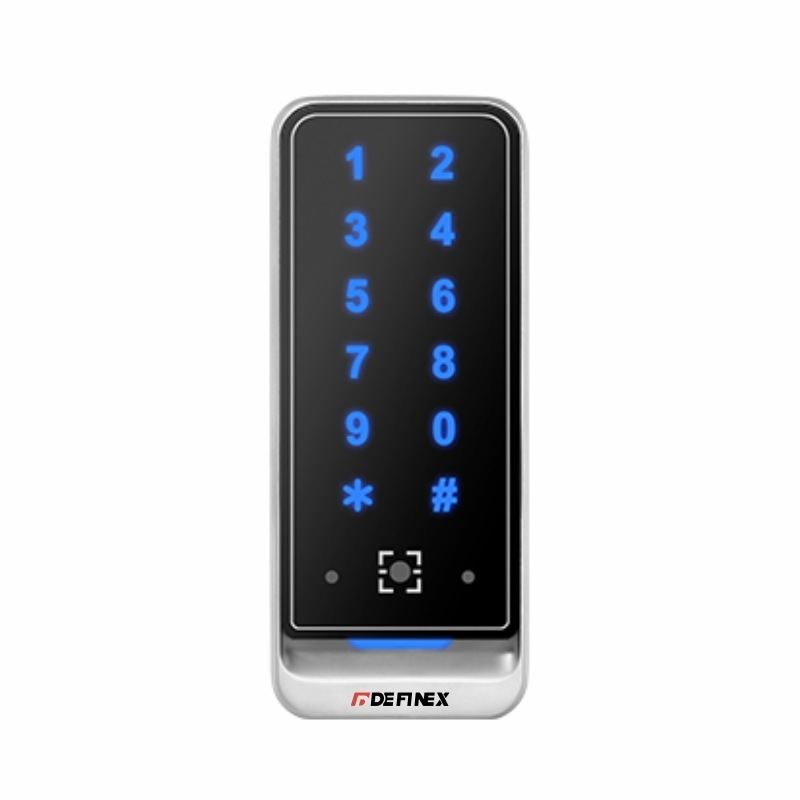

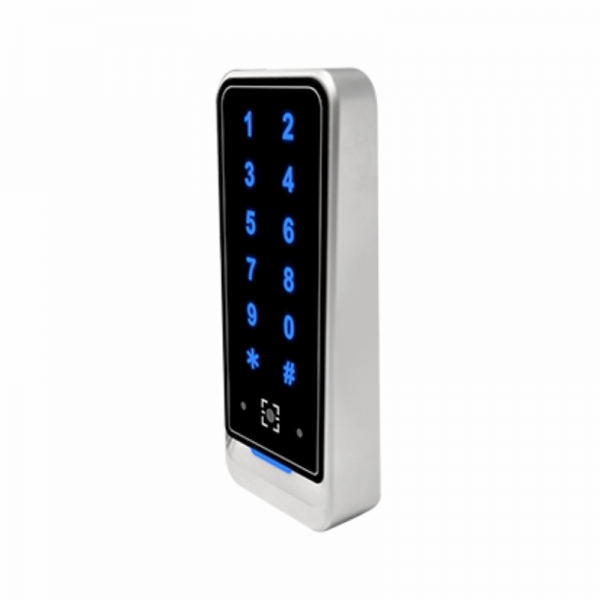

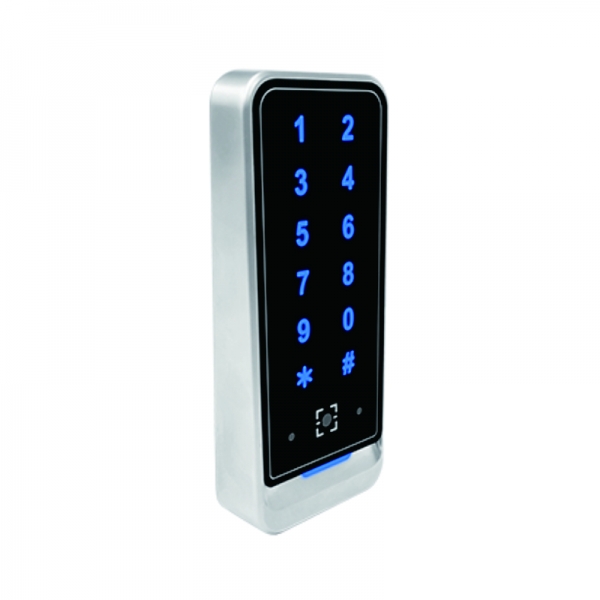

The QR code Reader is a new generation of intelligent access control card readers. The product has a high scanning speed, high recognition rate, strong compatibility. It can be connected to any access controller that supports Wiegand input. The reader adapts to various application scenarios and identifies almost all kinds of RFID cards and QR codes, so the series could be used for community management, visitor management, hotel management, unmanned supermarkets and other fields.
· New QR code access control technology
· Supports output modes of Wiegand 26/34/66, RS485, and USB (for firmware update only)
· Supports 125kHz ID Cards or 13.56MHz IC Cards, which includes Ultralight, Mifare (S50/S70), CPU, NFC (analog Card), Desfire EV1, NTag
· Supports 125kHz ID Cards or 13.56MHz IC Cards, which includes Ultralight, Mifare (S50/S70), CPU, NFC (analog Card), Desfire EV1, NTag
Specifications:
· Supports output modes of Wiegand 26/34/66, RS485, and USB (for firmware update only)
· Supports 125kHz ID Cards or 13.56MHz IC Cards, which includes Ultralight, Mifare (S50/S70), CPU, NFC (analog Card), Desfire EV1, NTag
· Supports 125kHz ID Cards or 13.56MHz IC Cards, which includes Ultralight, Mifare (S50/S70), CPU, NFC (analog Card), Desfire EV1, NTag
Specifications:
|
Model No.
|
DX-QR30-K-EM
|
DX-QR30-K-MF
|
|
| Communication Port | Wiegand,RS485 | Wiegand,RS485 | |
|
Read card Format
|
EM/125KHz | Mifare/13.56MHz | |
| Card Type | Ultralight,MF1(S50,S70),Desfire EV1,NTag,CPU,IC Keytag,UID,other ISO/IEC 14443A | ||
| Readable Codes | QR, Data Matrix, PDF417, EAN13, EAN8, UPC-A, UPC-EO, UPC-E1, Code 128, Code 39, Code 93, CodaBar | ||
| Code Identifcation Angle | 360 Rotation, ±45° tilt | ||
|
Read Distance
|
Code≥5cm; Card≥4cm |
||
|
Keypad
|
Yes
|
||
|
Verification Type |
PIN,Card,QR Code
|
||
|
LED Indicator
|
Green / Red Bi-color LED x 1 (Status / Power)
|
||
|
Beep Tone
|
Buzzer
|
||
|
Working Voltage |
DC 12V
|
||
|
Working Current |
≤200mA
|
||
| Active Current | Keypad:≤70mA,Wireless Exit Button:≤8mA,Wireless Controller:≤50mA | ||
|
Operating Temperature |
-20°C ~ +60°C
|
||
|
Operating Humidity |
20% ~ 80%(Non-condensing) |
||
|
Ingress Protection Rate |
IP66
|
||
| Housing Material | Zinc Alloy | ||
|
Unit Weight
|
300g
|
||
| Shipping Weight | 525g | ||
|
Dimension(WxHxD)
|
138*58*22.67mm(L*W*H)
|
||
