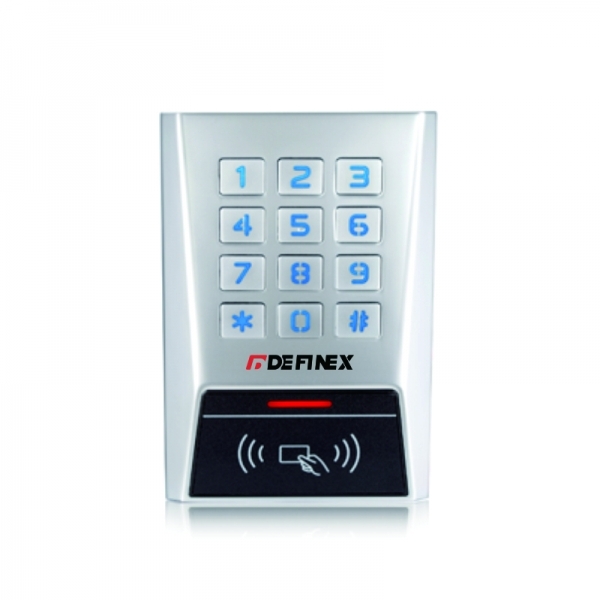

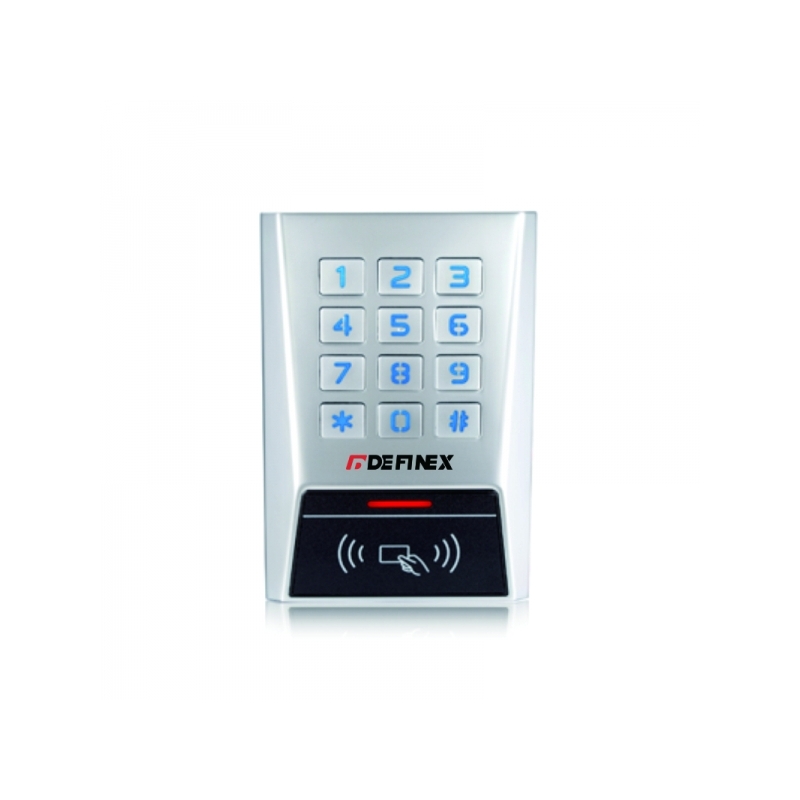

Mifare Card Reader

DX-RH6MK

Vandalproof Card/Pin Reader(EM/Mifare optional)

Zinc Alloy case,waterproof,confirms to IP66
Vandalproof design for occasions that need high-
   security levels such as banks and prisons
Mechanical Keypad with blue backlight
Wiegand 26/34(Default WG26);RS232/RS485 optional
Card type:Mifare 13.56MHz,EM/HID 125KHz optional
Read distance: EM<10CM,Mifare<5CM
Dual Working voltage: 12-48V DC/AC
Dimension: 115*75*23mm
Weight:500g
Enquiry Now

    The Keypad is made of zinc alloy to effectively prevent vandalism and
    suitable for occasions that
    needs high security levels such as banks and prisons
    ·

    Vandalproof design,capacitive mechanical keypad with blue backlight
    · Support Mifare Card(13.56MHz), EM, HID card(125KHz), or CPU card(13.56MHz,ISO14443A)optional
    · When working with controller,it provides unlock modes including card-swiping,pressing keypad or card-swiping+password
    · Wiegand 26/34/37bits output, other formats need to be customized, ranging from Wiegand 26 to 42.
    · Provides wiegand(default) and RS232/RS485 different communication interfaces to connect with controllers for different site requirements
    · Provides RS-485 communication interface version(DX-RH6MK-RS485) for long distance installation
    · Additional functions: Dustproof, LED and buzzer controlled via external controller(optional).

    Specifications:

    Model No.
    DX-RH6EK
    DX-RH6MK
    DX-RH6XK
    Card Supported EM/125KHz Mifare/13.56MHz EM+Mifare+HID
    Read Range
    3-8(Max.)
    1-5(Max.)
    3-8(Max.)
    Comm.Interface

    Wiegand 26(default)/34/37 output

    Wiegand 26(default)/34/37 output

    Wiegand 26(default)/34/37 output
    Vandal-resistant Case Yes
    Keypad
    12keys (0-9, *,#),with blue backlight

    Verification Type

    Card,Password,Card+Password
    Comm.Baudrate
    None

    9,600 bps-N-8-1

    9,600 bps-N-8-1

    LED Indicator
    Green / Red Bi-color LED x 1 (Status / Power)
    Beep Tone
    Buzzer

    Ingress Protection Rate

    IP66

    Working Voltage

    12V DC ±10

    Current Consumption

    200mA (max)

    Operating Temperature

    -30°C - 75°C

    Operating Humidity

    20% ~ 80%(Non-condensing)

    Unit Weight
    500g
    Dimension(WxHxD)
    115*75*23mm
