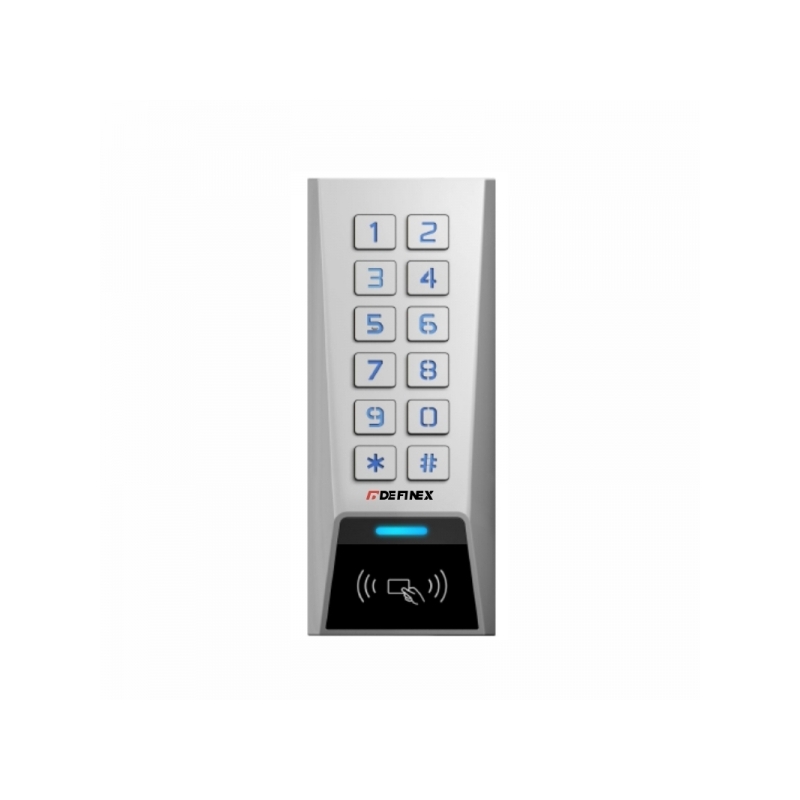

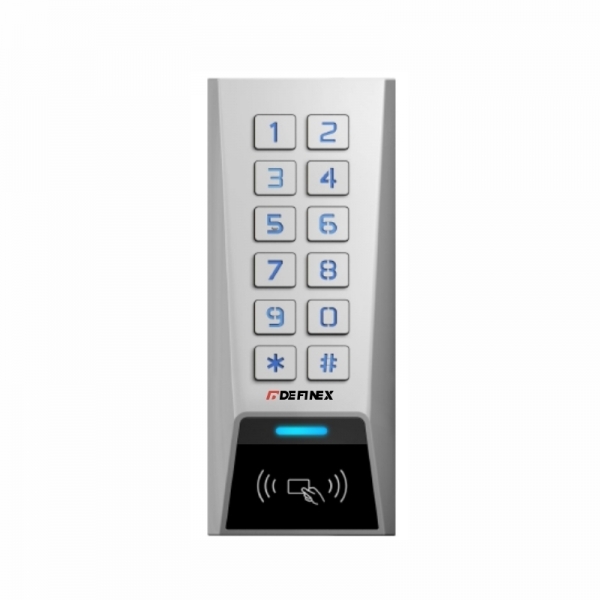

The Keypad is made of zinc alloy to effectively prevent vandalism and suitable for occasions that
needs high security levels such as banks and prisons
· Vandalproof design,capacitive mechanical keypad with blue backlight
· Support Mifare Card(13.56MHz), EM, HID card（125KHz）, or CPU card（13.56MHz，ISO14443A）optional
· When working with controller,it provides unlock modes including card-swiping,pressing keypad or card-swiping+password
· Vandalproof design,capacitive mechanical keypad with blue backlight
· Support Mifare Card(13.56MHz), EM, HID card（125KHz）, or CPU card（13.56MHz，ISO14443A）optional
· When working with controller,it provides unlock modes including card-swiping,pressing keypad or card-swiping+password
· Wiegand 26/34/37bits output, other formats need to be customized, ranging from Wiegand 26 to 42.
· Provides wiegand(default) and RS232/RS485 different communication interfaces to connect with controllers for different site requirements
· Provides RS-485 communication interface version(DX-RH5MK-RS485) for long distance installation
· Additional functions: Dustproof, LED and buzzer controlled via external controller(optional).
Specifications:
· Provides wiegand(default) and RS232/RS485 different communication interfaces to connect with controllers for different site requirements
· Provides RS-485 communication interface version(DX-RH5MK-RS485) for long distance installation
· Additional functions: Dustproof, LED and buzzer controlled via external controller(optional).
Specifications:
|
Model No.
|
DX-RH5EK
|
DX-RH5MK
|
DX-RH5XK
|
| Card Supported | EM/125KHz | Mifare/13.56MHz | EM+Mifare+HID |
|
Read Range
|
3-8(Max.)
|
1-5(Max.)
|
3-8(Max.)
|
|
Comm.Interface
|
Wiegand 26(default)/34/37 output |
Wiegand 26(default)/34/37 output |
Wiegand 26(default)/34/37 output
|
| Vandal-resistant Case | Yes | ||
|
Keypad
|
12keys (0-9, *,#),with blue backlight
|
||
|
Verification Type |
Card，Password,Card+Password
|
||
|
Comm.Baudrate
|
None
|
9,600 bps-N-8-1 |
9,600 bps-N-8-1 |
|
LED Indicator
|
Green / Red Bi-color LED x 1 (Status / Power)
|
||
|
Beep Tone
|
Buzzer
|
||
|
Ingress Protection Rate |
IP66
|
||
|
Working Voltage |
12V DC ±10％
|
||
|
Current Consumption |
200mA (max)
|
||
|
Operating Temperature |
-30°C - 75°C
|
||
|
Operating Humidity |
20% ~ 80%(Non-condensing) |
||
|
Unit Weight
|
500g
|
||
|
Dimension(WxHxD)
|
134*55*22mm
|
||
