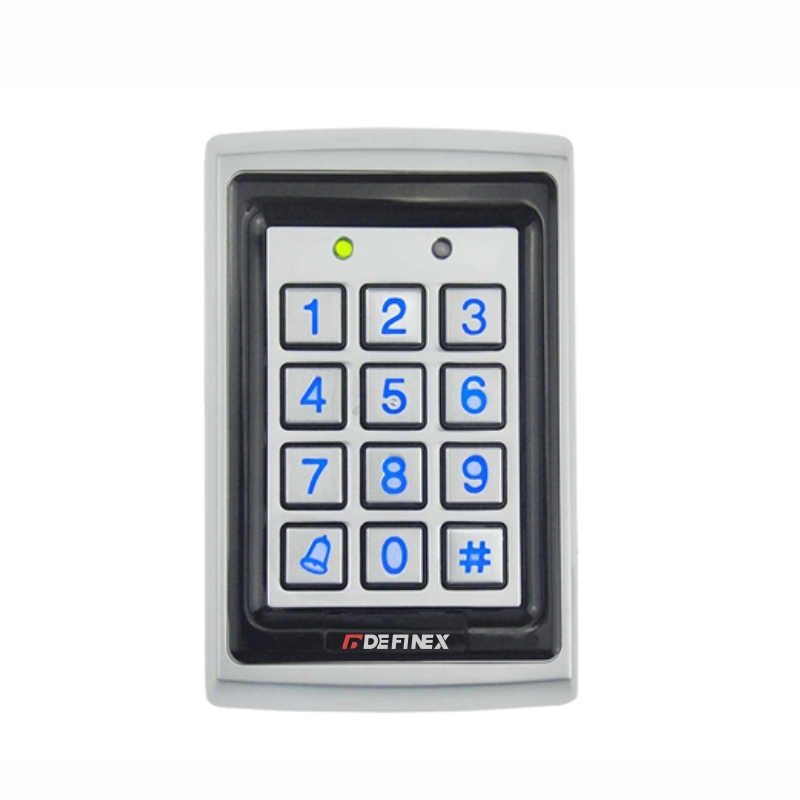

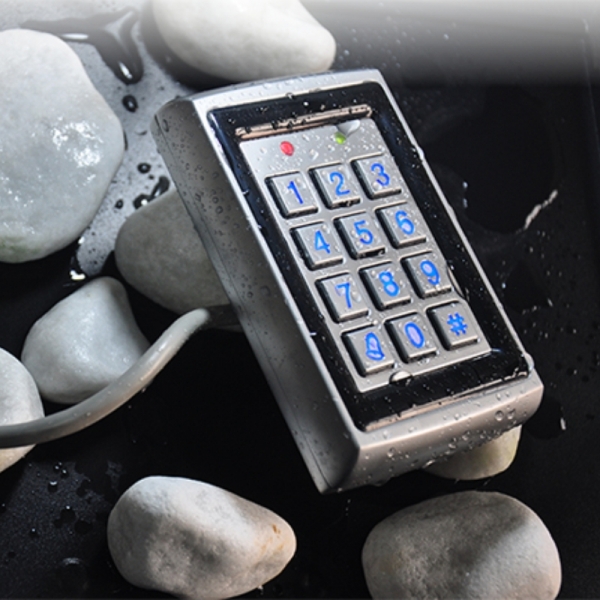

The Keypad is made of zinc alloy to effectively prevent vandalism and suitable for occasions that
needs high security levels such as banks and prisons
· Vandalproof design,capacitive mechanical keypad with blue backlight
· Support Mifare Card(13.56MHz), EM, HID card（125KHz）, or CPU card（13.56MHz，ISO14443A）optional
· When working with controller,it provides unlock modes including card-swiping,pressing keypad or card-swiping+password
· Vandalproof design,capacitive mechanical keypad with blue backlight
· Support Mifare Card(13.56MHz), EM, HID card（125KHz）, or CPU card（13.56MHz，ISO14443A）optional
· When working with controller,it provides unlock modes including card-swiping,pressing keypad or card-swiping+password
· Wiegand 26/34 output, other formats need to be customized, ranging from Wiegand 26 to 42.
· Provides wiegand(default) and RS232/RS485 different communication interfaces to connect with controllers for different site requirements
· Provides RS-485 communication interface version(DX-7612MK-RS485) for long distance installation
· Additional functions: Dustproof, LED and buzzer controlled via external controller(optional).
Specifications:
· Provides wiegand(default) and RS232/RS485 different communication interfaces to connect with controllers for different site requirements
· Provides RS-485 communication interface version(DX-7612MK-RS485) for long distance installation
· Additional functions: Dustproof, LED and buzzer controlled via external controller(optional).
Specifications:
|
Model No.
|
DX-7612MK
|
DX-7612MK-RS485
|
DX-7612MK-RS232
|
|
Read Format
|
Mifare(13.56MHz)
|
||
|
Read Range
|
1-5(Max.)
|
1-5(Max.)
|
1-5(Max.)
|
|
Comm.Interface
|
Wiegand 26(default)/34 output |
RS485 |
RS232
|
| Vandal-resistant Case | Yes | ||
|
Keypad
|
12keys (0-9, #，door bell),with blue backlight
|
||
|
Verification Type |
Card，Password,Card+Password
|
||
|
Comm.Baudrate
|
None
|
9,600 bps-N-8-1 |
9,600 bps-N-8-1 |
|
LED Indicator
|
Green / Red Bi-color LED x 1 (Status / Power)
|
||
|
Beep Tone
|
Buzzer
|
||
|
Ingress Protection Rate |
IP67
|
||
|
Working Voltage |
12V DC ±10％
|
||
|
Current Consumption |
200mA (max)
|
||
|
Operating Temperature |
-30°C - 75°C
|
||
|
Operating Humidity |
20% ~ 80%(Non-condensing) |
||
|
Unit Weight
|
615g
|
||
|
Dimension(WxHxD)
|
118*75*22mm
|
||
