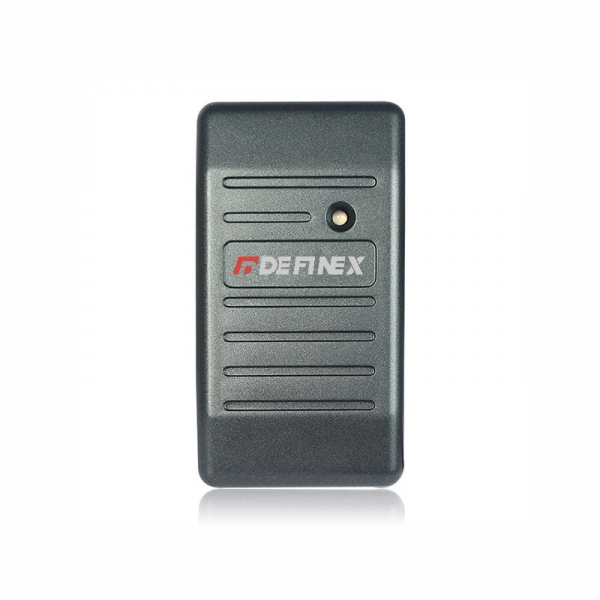

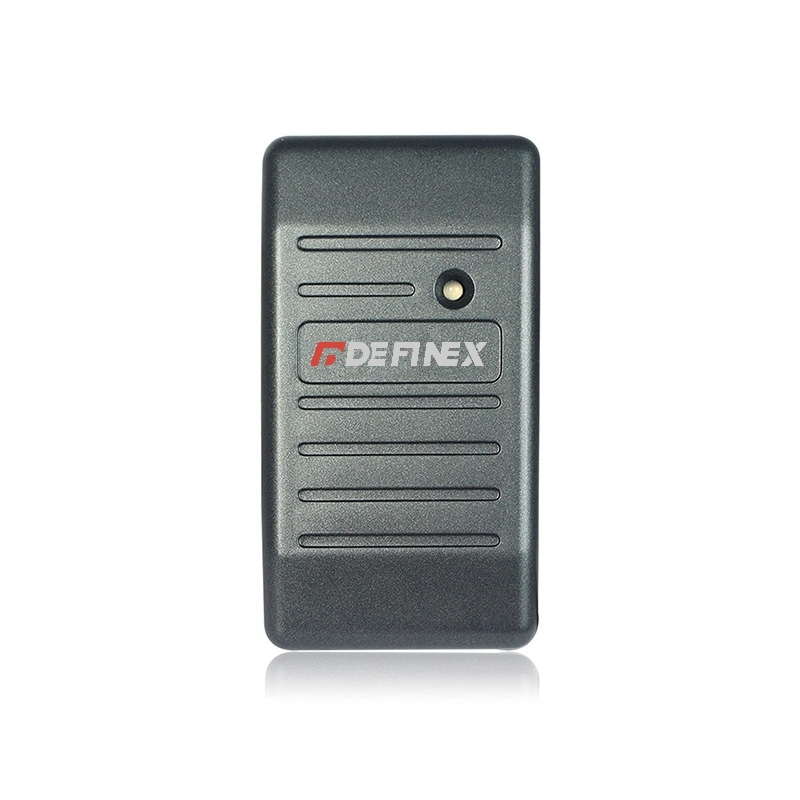

HID Compatible card reader

DX-R501H

RFID Card Reader(HID)

Mini slim design
Waterproof,confirms to IP66
Wiegand 26/34(Default WG26);RS232 optional
Card type:HID 125kHZ(EM, Mifare,or EM+Mifare optional)
Read distance: EM<10CM,Mifare<5CM
Working voltage: 9-16V DC
Dimension: 80*42*12.5mm
Weight:60g
Enquiry Now

    ·

    Plastic matte technic, fully potted, confirms to IP66
    · Support HID card(125KHz), or EM,Mifare CPU card(13.56MHz,ISO14443A)optional
    · Wiegand 26/34 output, other formats need to be customized, ranging from Wiegand 26 to 42.
    · Additional functions: Dustproof, LED and buzzer controlled via external controller(optional).

    Specifications:

    Model No.
    DX-R501H
    DX-R501H-RS485
    DX-R501H-RS232
    Read Format
    HID card(125KHz)
    Read Range
    3-8(Max.)
    3-8(Max.)
    3-8(Max.)
    Comm.Interface

    Wiegand 26(default)/34 output

    Wiegand 26(default)/34 output

    RS232
    Keypad
    N/A

    Verification Type

    Card
    Comm.Baudrate
    None

    9,600 bps-N-8-1

    9,600 bps-N-8-1

    LED Indicator
    Power/Comm.
    Beep Tone
    Buzzer

    Ingress Protection Rate

    IP66

    Working Voltage

    12V DC ±10

    Current Consumption

    60mA (max)

    Operating Temperature

    -30°C - 75°C

    Operating Humidity

    20% ~ 80%(Non-condensing)

    Unit Weight
    60g
    Dimension(WxHxD)
    80*42*12.5mm
