· Plastic matte technic, fully potted, confirms to IP66
· Support HID/125KHz card, or EM/125KHz,Mifare/13.56MHz or EM+Mifare dual frequency card supported
· Wiegand 26/34 output, other formats need to be customized, ranging from Wiegand 26 to 42.
· Additional functions: Dustproof, LED and buzzer controlled via external controller(optional).
Specifications:
|

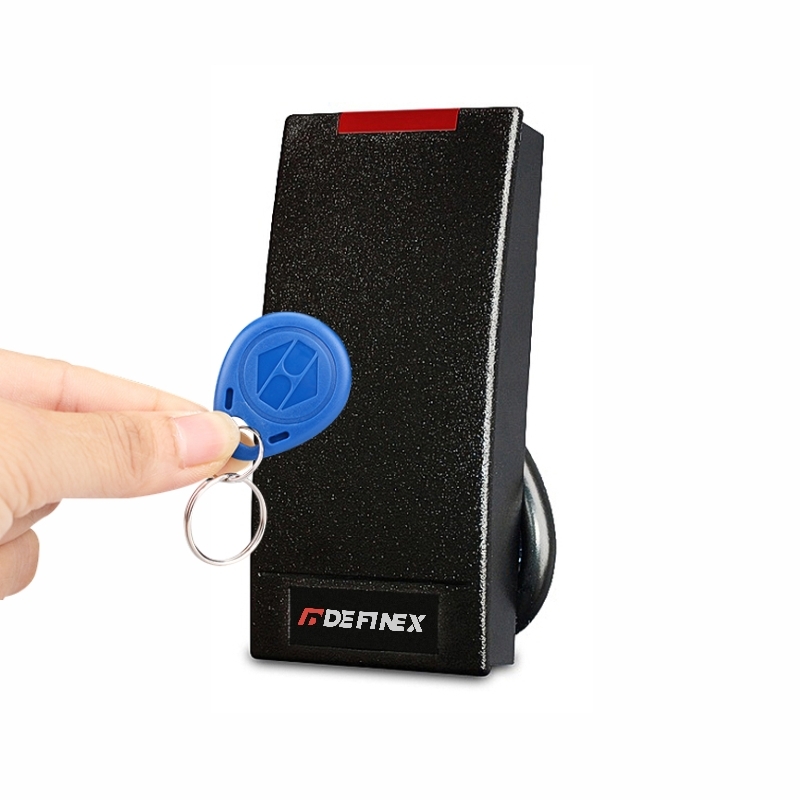

Model No.
|
DX-R116H
|
DX-R116H-RS485
|
DX-R116H-RS232
|
|
Read Format
|
HID/125KHz
|
||
|
Read Range
|
3-8cm (Max.)
|
3-8cm (Max.)
|
3-8cm (Max.)
|
|
Comm.Interface
|
Wiegand 26(default)/34 output |
RS485 |
RS232
|
|
Keypad
|
N/A
|
||
|
Verification Type |
Card
|
||
|
Comm.Baudrate
|
None
|
9,600 bps-N-8-1 |
9,600 bps-N-8-1 |
|
LED Indicator
|
Power/Comm.
|
||
|
Beep Tone
|
Buzzer
|
||
|
Ingress Protection Rate |
IP66
|
||
|
Working Voltage |
12V DC ±10％
|
||
|
Current Consumption |
60mA (max)
|
||
|
Operating Temperature |
-30°C - 75°C
|
||
|
Operating Humidity |
20% ~ 80%(Non-condensing) |
||
|
Unit Weight
|
60g
|
||
|
Dimension(WxHxD)
|
100*46*20mm
|
||
