Fingerprint Recognition TA


Network Fingerprint TA w/Access control function

Identification Methods:Fingperprint,Password & RFID Card
>  Fingerprint User Capacity:1,000
>  Password User Capacity:1,000
>  Card User Capacity:1,000 (Optional)
>  Records Capacity:100,000 records
>  Identification Speed:<1.0 second
>  Display:2.4 inch TFT Color LCD
>  Door Bell Supported
>  Lanugage:English(extendable to multi-language)
>  Battery Backup:±4hours(optional)
>  Communication Interface:USB2.0,RS232/485 and TCP/IP
>  USB:Upload/Download Data from USB Flash Disk
>  Access Controller:Simple Access Controller
>  Other Functions:Voice Output,Bell,Auto Power OFF/SLEEP,Self Test,
     Log Search,DHCP & Real-time Events
>  Power Supply:9V DC
>  Dimensions:90*90*28mm(L*W*H)
Enquiry Now

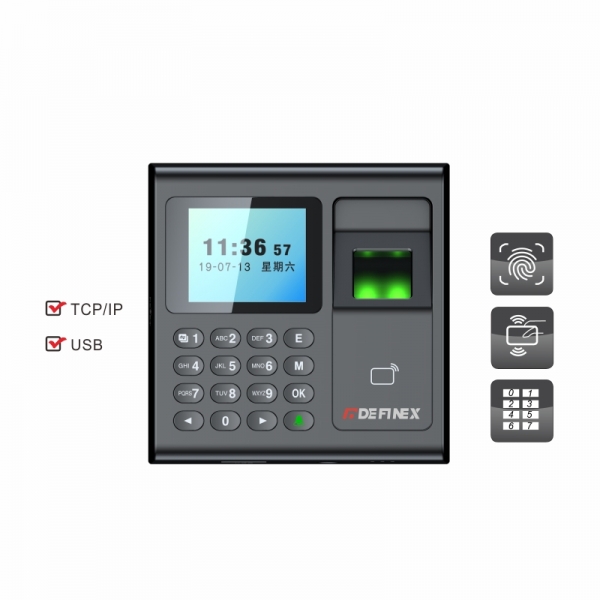

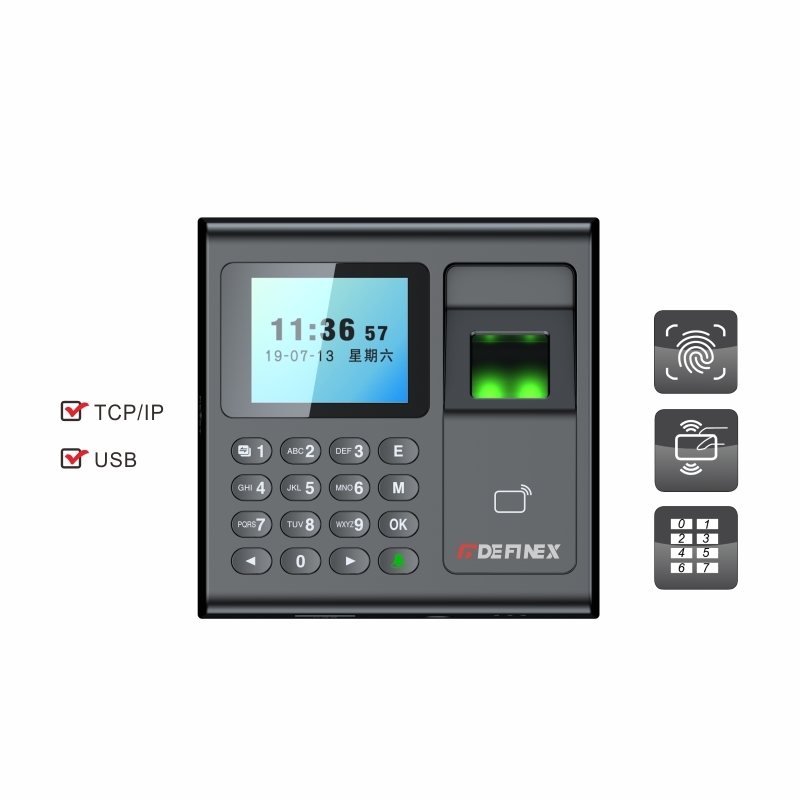

    Definex NF300
    is an fingerprint recognation terminal which can work both in network and standalone modes.
    In network mode,it can connect with software for time attendance and access control management.
    And in standalone mode, can use USB disk to download report directly from device.

    Languages customization:
    English/Chinese are default languages.And other language such as Arabic, French, Spanish, Russian, and Indonesian are available to customized

    · The Fingerprint device with 2 communication interface optional.

       · Model: DT-NF300EM           TCP/IP+USB version
       · Model:DT-NF300EM               USB version

    CPU ATMEL Arm 9
    LCD Display 2.4"TFT Color screen
    Unlock Mode
    Fingerprint,Card or password (optional)
    Fingerprint Capacity
    Password capacity
    Card Capacity(Optional)
    Record Cpacity 100,000
    Card Type(optional) EM 125KHz(Mifare 13.56MHz optional)
    Read distance
    Response Time
    0.5s (full of 3000)
    TCP/IP (DT-NF300EM),USB(for downloading/uploading)
    Wiegand 26bits input/outpput
    Tamper device,Force to open door ,Open door overtime
    Door Bell
    LCD Language
    English,Chinese (others need customization)
    Voice English/Chinese
    Access Control Function 3rd party electric lock, door sensor,exit button, alarm, Door Bell
    FAR (False Acceptance Rate)
    Less than 0.0001%
    FRR (False Rejection Rate)
    Less than 0.01%
    Matching Mode
    1: N
    Working Voltage
    DC 12V/ 1.5A
    With software or not
    With free software for access control and time attendance management(only for model#DX-NF300EM)
    Operating Temperature
    0℃- 45℃
    Operating Humidity
    Material ABS enclusure
    Unit Dimension
    90* 90*28mm(L*W*H)
    Unit Weight

    *Note: The product is updated constantly and all the product parameters shown above are subject to change without notice
