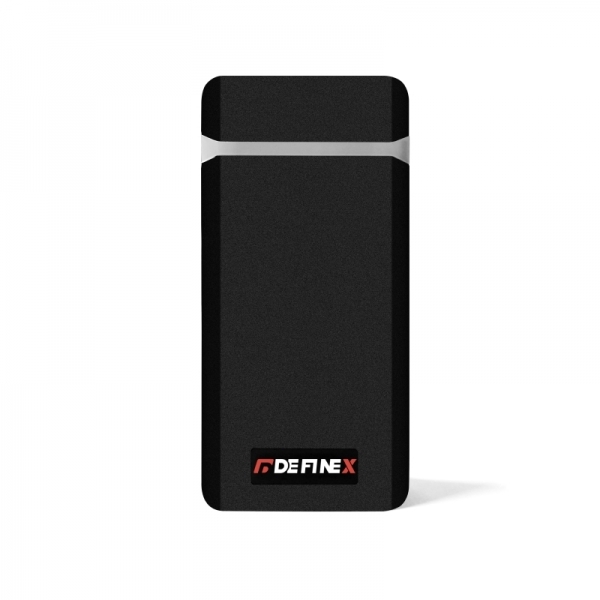

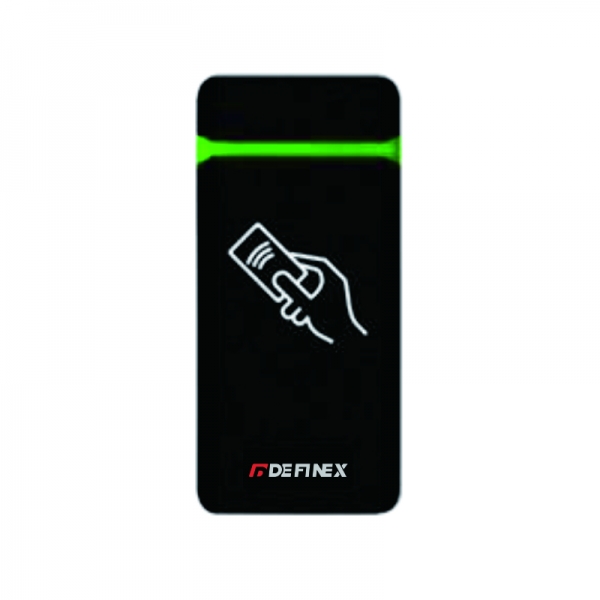

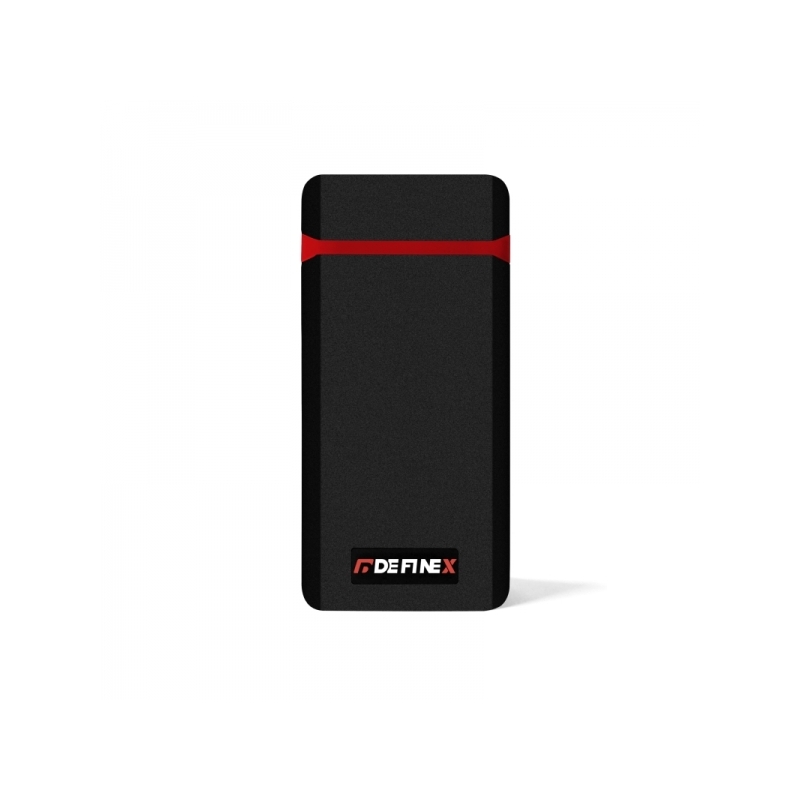

· Anti-clone EM/Mifare Card Reader
· Plastic matte technic, fully potted, confirms to IP66
· Support EM (125KHz) and Mifare (13.56MHz) dual-frequency card type
· Wiegand 26/34 output, other formats need to be customized, ranging from Wiegand 26 to 42.
· Additional functions: Dustproof, LED and buzzer controlled via external controller(optional).
Specifications:
|
Model No. |
DX-R10ME-AN(anti-clone version) |
|
Read Format |
EM 125KHz+Mifare 13.56MHZ |
|
Read Range |
1-10CM(Max.) |
|
Comm.Interface |
Wiegand 26(default)/34 output |
|
Keypad |
N/A |
|
Verification Type |
Card |
|
Comm.Baudrate |
None |
|
LED Indicator |
Power/Comm. |
|
Beep Tone |
Buzzer |
|
Ingress Protection Rate |
IP66 |
|
Working Voltage |
12V DC ±10％ |
|
Current Consumption |
60mA (max) |
|
Operating Temperature |
-30°C - 75°C |
|
Operating Humidity |
20% ~ 80%(Non-condensing) |
|
Unit Weight |
75g |
|
Dimension(WxHxD) |
110*52*22mm |
