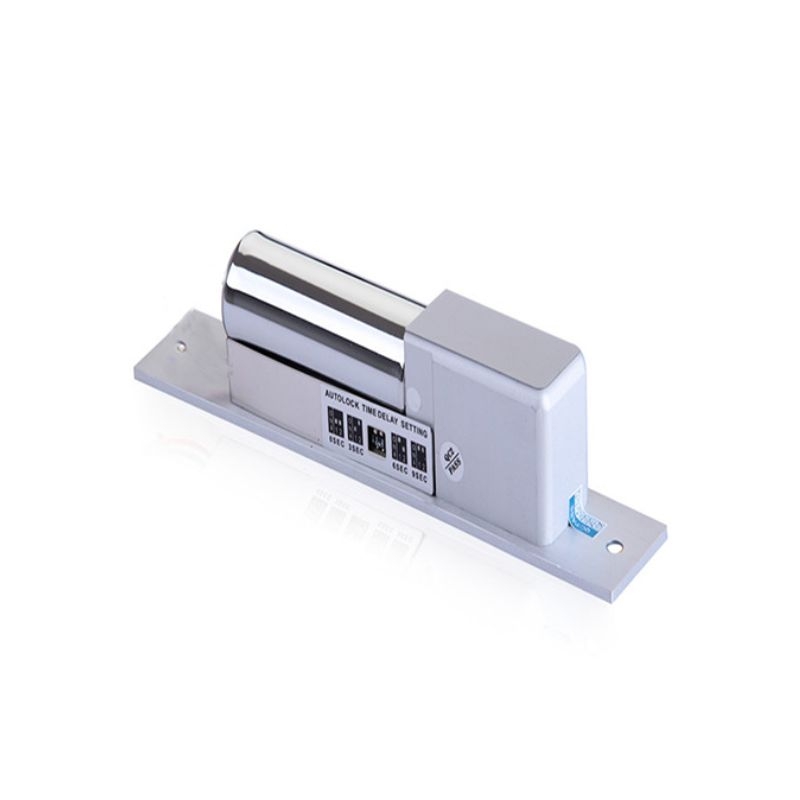

Electric Bolt Lock

DE-LB15-F

8 Line Fall Safe Bolt Lock with signal and timer
Enquiry Now
    Product Parameter
    Parameter Description
    Input Voltage
    12DC+10%
    Current
    Start:120mA  Standby:100mA
    Timer
    0,3.6.9 Sec
    Signal Output
    NC/COM Door Position Status Output
    Decorative Plate
    205L*35W*40H(mm)
    Strike(Stainless steel)
    100L*30W*3H(mm)
    Bolt
    15mm DIA,Stainless steel 16mm throw
    Feature
    Fail Safe
    Surface temp
    Low temperature
    Induction Distance
    8mm
    Operating Temp
    40 ~+50
    Suitable Humidity
    0~95%(non-condensing)
    Suitable For
    Glass door,metal door,wooden door
    Weight
    0.85kg
    Packing details
    30pcs/ctn, 40.5*27.9*31cm
    Wiring Guide
    Red
      +DC 12V
    Black
       -GND
    Yellow
    Button switch+(Push)
    White
    Signal Output
    Brown
    COM (with signal)
    Blue
    No (with signal)
    Green
    NC (with signal
