Product Parameter
|
Parameter Description
|
|
Input Voltage
|
12DC+10%
|
|
Current
|
Start:900mA Standby:120mA
|
|
Timer
|
0,3.6.9 Sec
|
|
Signal Output
|
NC/COM/NO
|
|

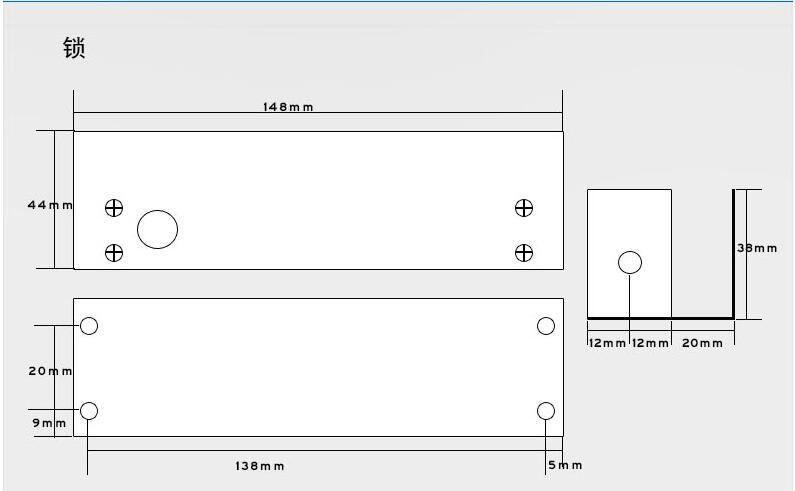

Decorative Plate
|
146L*43W*38H(mm)
|
|

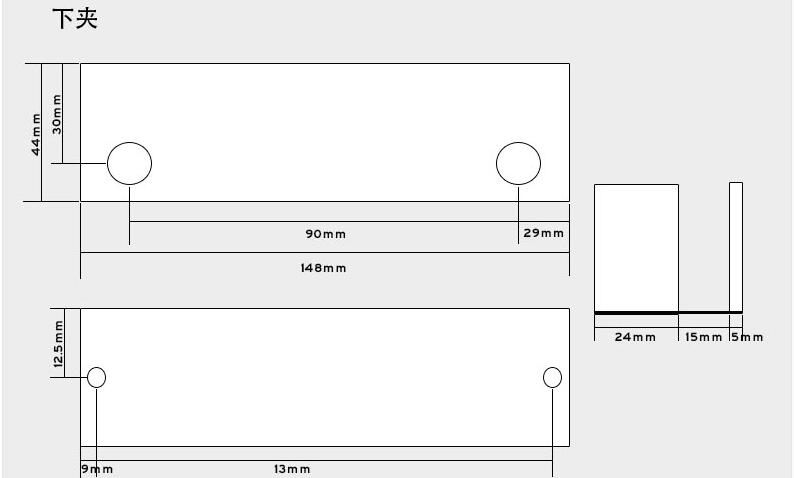

Strike(Stainless steel)
|
146L*43W*38H(mm)
|
|
Bolt
|
17mm DIA,Stainless steel 13mm throw
|
|
Feature
|
Fail Safe
|
|
Surface temp
|
Low temperature
|
|
Induction Distance
|
8mm
|
|
Operating Temp
|
40 ℃~+50 ℃
|
|
Suitable Humidity
|
0~95%(non-condensing)
|
|
Suitable For
|
Glass door,metal door,wooden door
|
|
Weight
|
0.95kg
|
|
Packing details
|
30pcs/ctn, 40.5*27.9*31cm
|
|
Wiring Guide
|
|
|
Red
|
+DC 12V
|
|
Black
|
-GND
|
|
Yellow
|
Button switch+(Push)
|
|
White
|
Signal Output
|
|
Brown
|
COM (with signal)
|
|
Blue
|
No (with signal)
|
|
Green
|
NC (with signal
|
